Assembly

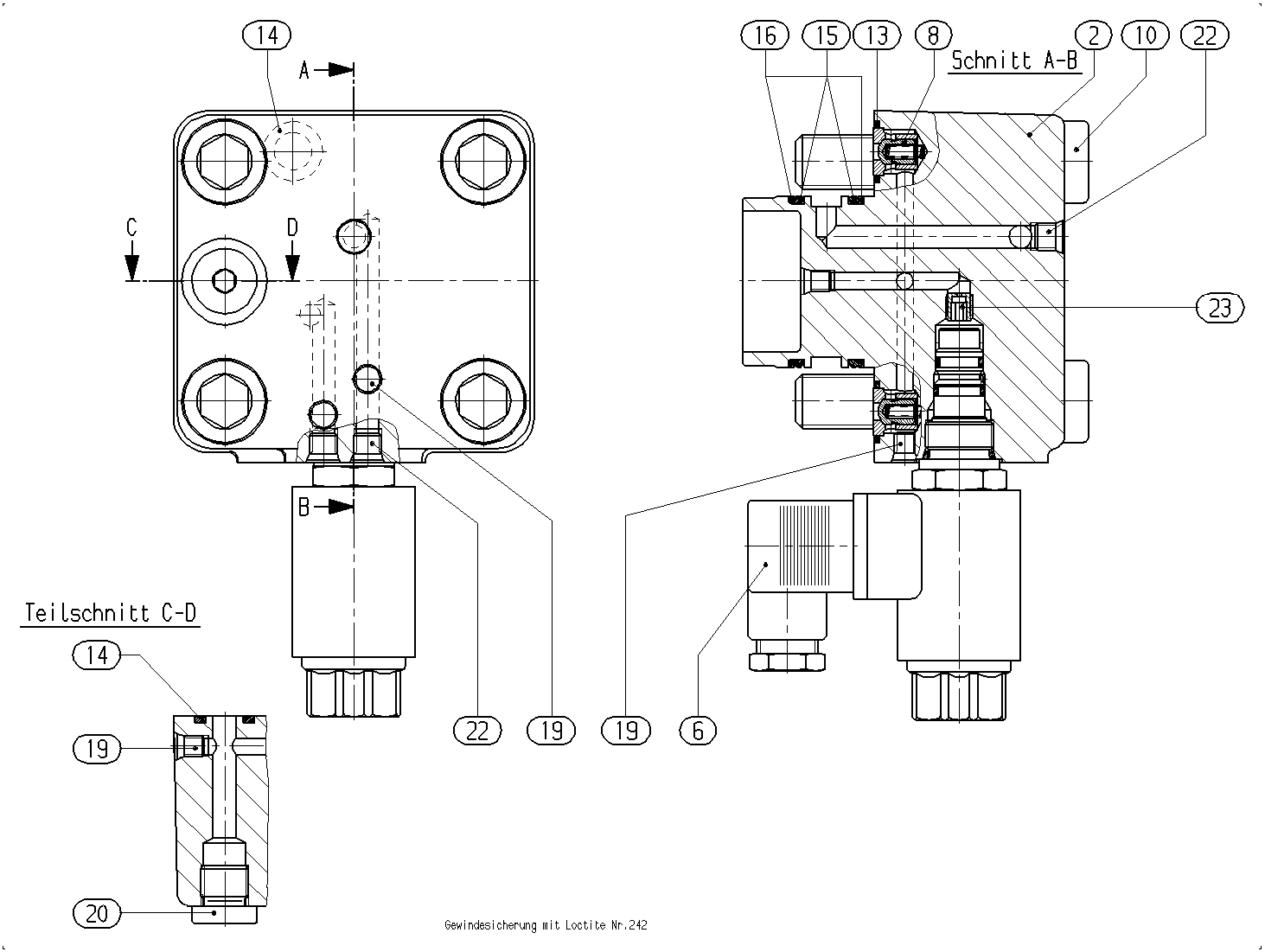

CONTROL PARTR910949950
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910931285 | CONTROL HOUSING | 1 | ||
| R902453750 | SEAT VALVE Assembly parts list →L | 1 | ||
| R910974659 | HY-CHECK VALVE | 2 | ||
| R910126535 | SOCKET HEAD CAP SCREW | 4 | ||
| R910976410 | O-RING | 2 | ||
| R910518336 | O-RING | 3 | ||
| R910929855 | O-RING | 2 | ||
| R910929791 | BACKUP RING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910594253 | THROTTLE SCREW | 1 |
