Assembly

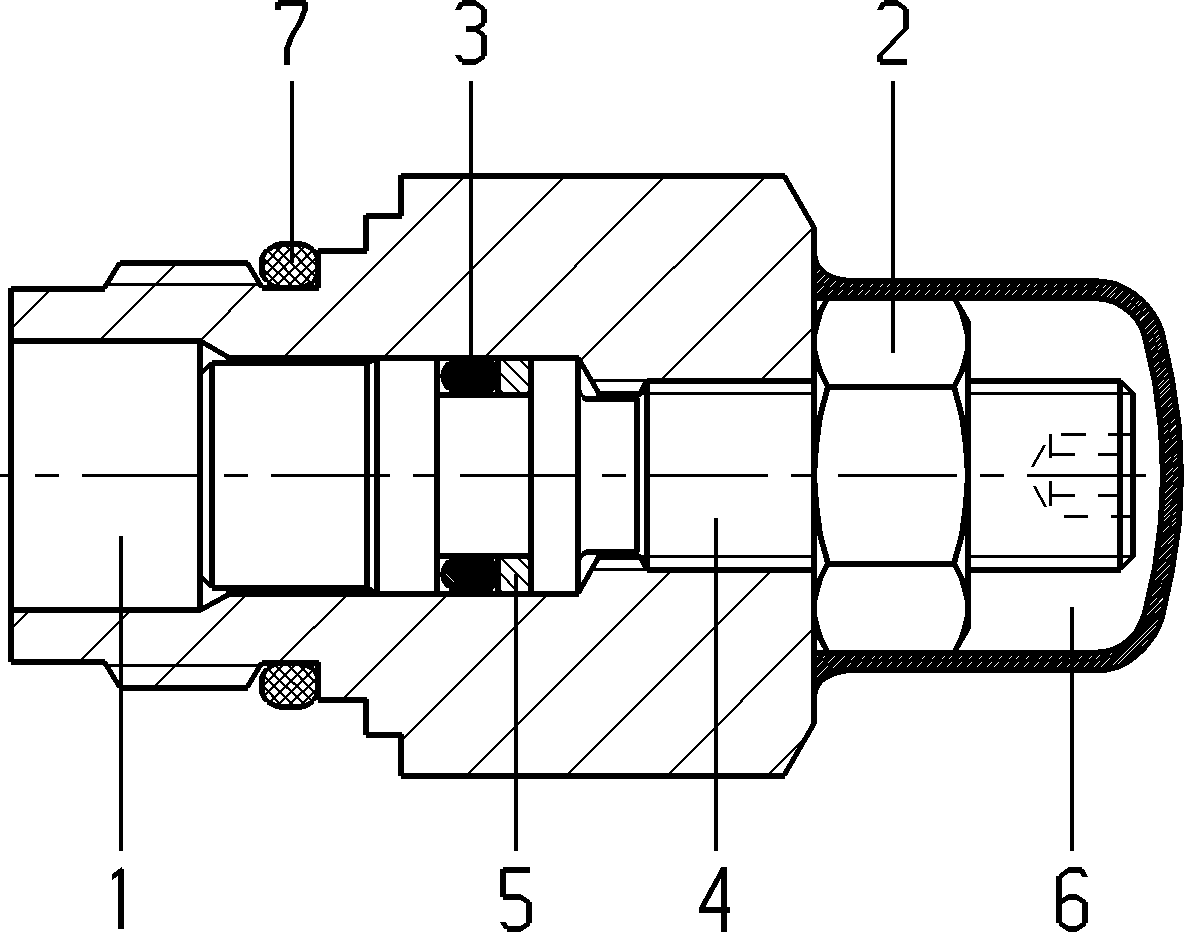

STROKE LIMITERR910960006
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910949926 | SCREW PLUG | 1 | |
| R910934194 | HEXAGON NUT | 1 | ||
| R910101982 | O-RING | 1 | ||
| R910960773 | STUD BOLT | 1 | ||
| 5 | R910946269 | BACKUP RING | 1 | |
| 6 | R910946307 | PROTECTIVE CAP | 1 | |
| R910401803 | O-RING | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910949926 | SCREW PLUG | 1 | |
| R910934194 | HEXAGON NUT | 1 | ||
| R910101982 | O-RING | 1 | ||
| R910960773 | STUD BOLT | 1 | ||
| 5 | R910946269 | BACKUP RING | 1 | |
| 6 | R910946307 | PROTECTIVE CAP | 1 | |
| R910401803 | O-RING | 1 |
