Assembly

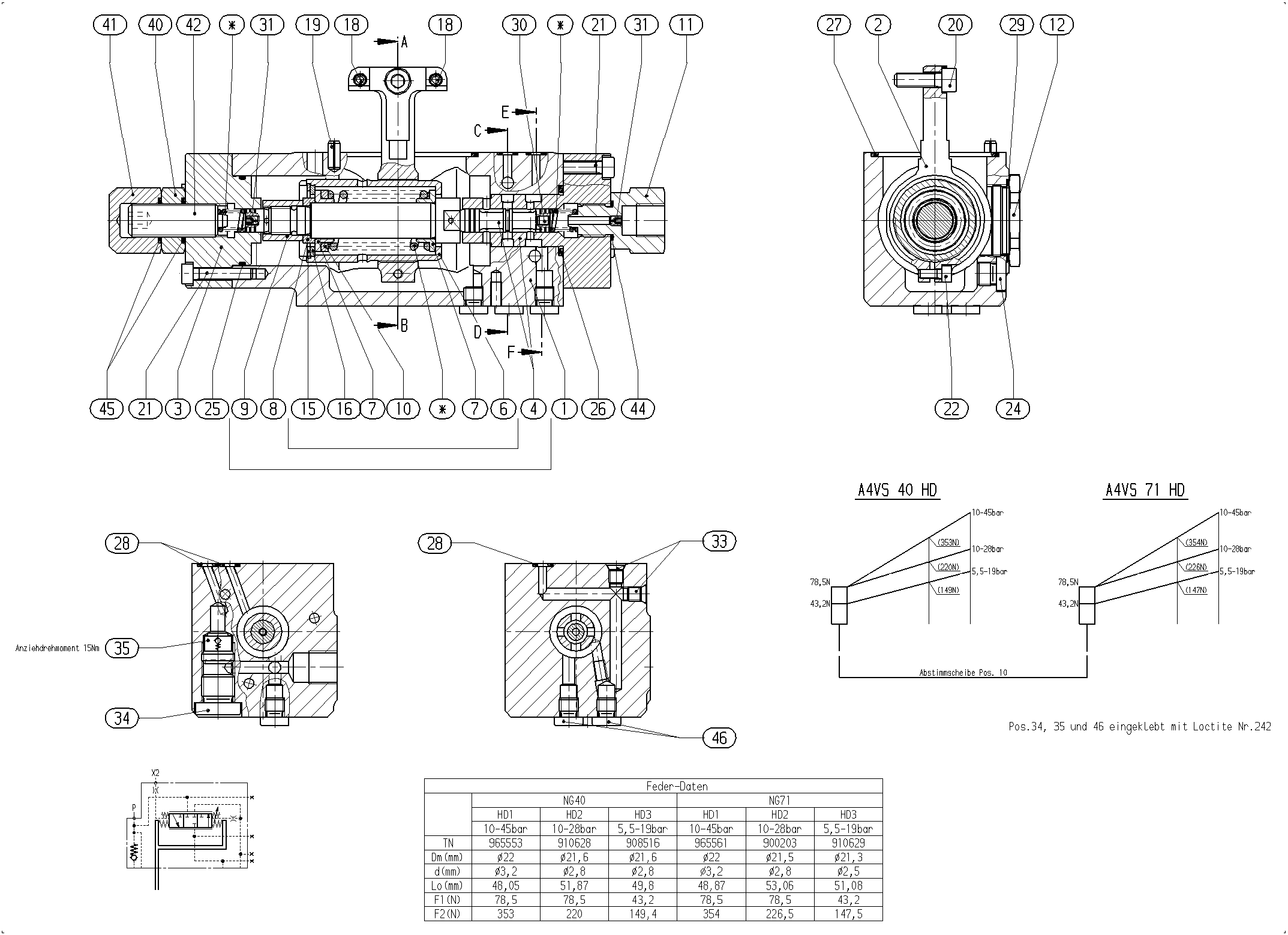

CONTROL MODULER910960520
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910930197 | CONTROL HOUSING | 1 | ||
| R902474030 | LEVER | 1 | ||
| R910965499 | CONTROL COVER | 1 | ||
| R910965421 | CONTROL PISTON | 1 | ||
| R910965472 | SPRING SLEEV | 1 | ||
| R902426686 | SPRING SLEEV | 2 | ||
| R910965545 | SHIM RING | 1 | ||
| R910965537 | COUNTER NUT | 1 | ||
| R910965502 | ADJUSTMENT SHIM | 1 | ||
| R910920936 | THREADED FASTENER | 1 | ||
| R910966711 | SCREW PLUG | 1 | ||
| R910105937 | RETAINING RING | 1 | ||
| R910105422 | SUPPORTING DISC | 1 | ||
| R910997949 | CLAMPING SLEEVE | 2 | ||
| R910073571 | SLOTTED SPRING PIN | 2 | ||
| R910109304 | SOCKET HEAD CAP SCREW | 1 | ||
| R910120111 | SOCKET HEAD CAP SCREW | 6 | ||
| R910109177 | SOCKET HEAD CAP SCREW | 1 | ||
| R909156649 | SCREW PLUGD | 1 | ||
| R910971138 | O-RINGD | 1 | ||
| R910934357 | O-RINGD | 1 | ||
| R910824801 | O-RINGD | 1 | ||
| R910930806 | O-RINGD | 3 | ||
| R910756601 | O-RINGD | 1 | ||
| R910303518 | SETSCREW | 1 | ||
| R910976303 | NOZZLE | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R902435571 | CHECK VALVE | 1 | ||
| R910903387 | NUT | 1 | ||
| R910903389 | CAP NUT | 1 | ||
| R910920935 | SETSCREW | 1 | ||
| R902602257 | SEAL RINGD | 1 | ||
| R910930792 | O-RINGD | 2 | ||
| R909156863 | SCREW PLUG | 4 |
