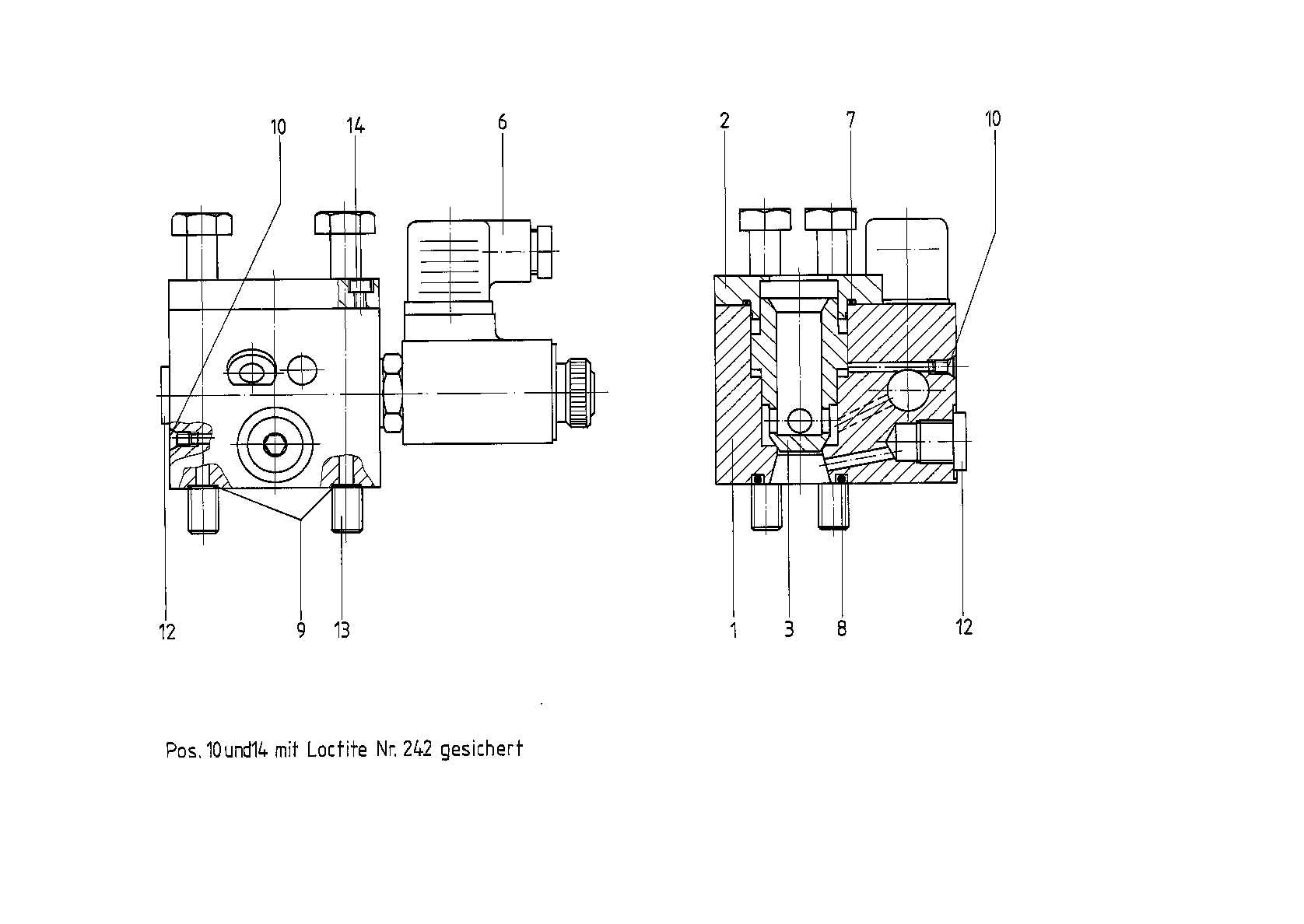

Assembly
DUMMYR910960650
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R910960651 | HOUSING | 1 | |
| 2 | R910908963 | COVER | 1 | |
| 3 | R910908964 | VALVE SPOOL | 1 | |
| 6 | R902453750 | SEAT VALVE Assembly parts list →L | 1 | |
| 7 | R910977058 | O-RINGD | 1 | |
| 8 | R910112755 | O-RINGD | 1 | |
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| 13 | R910123862 | HEXAGON SCREW | 4 | |
| 15 | R910109215 | SOCKET HEAD CAP SCREW | 2 |
