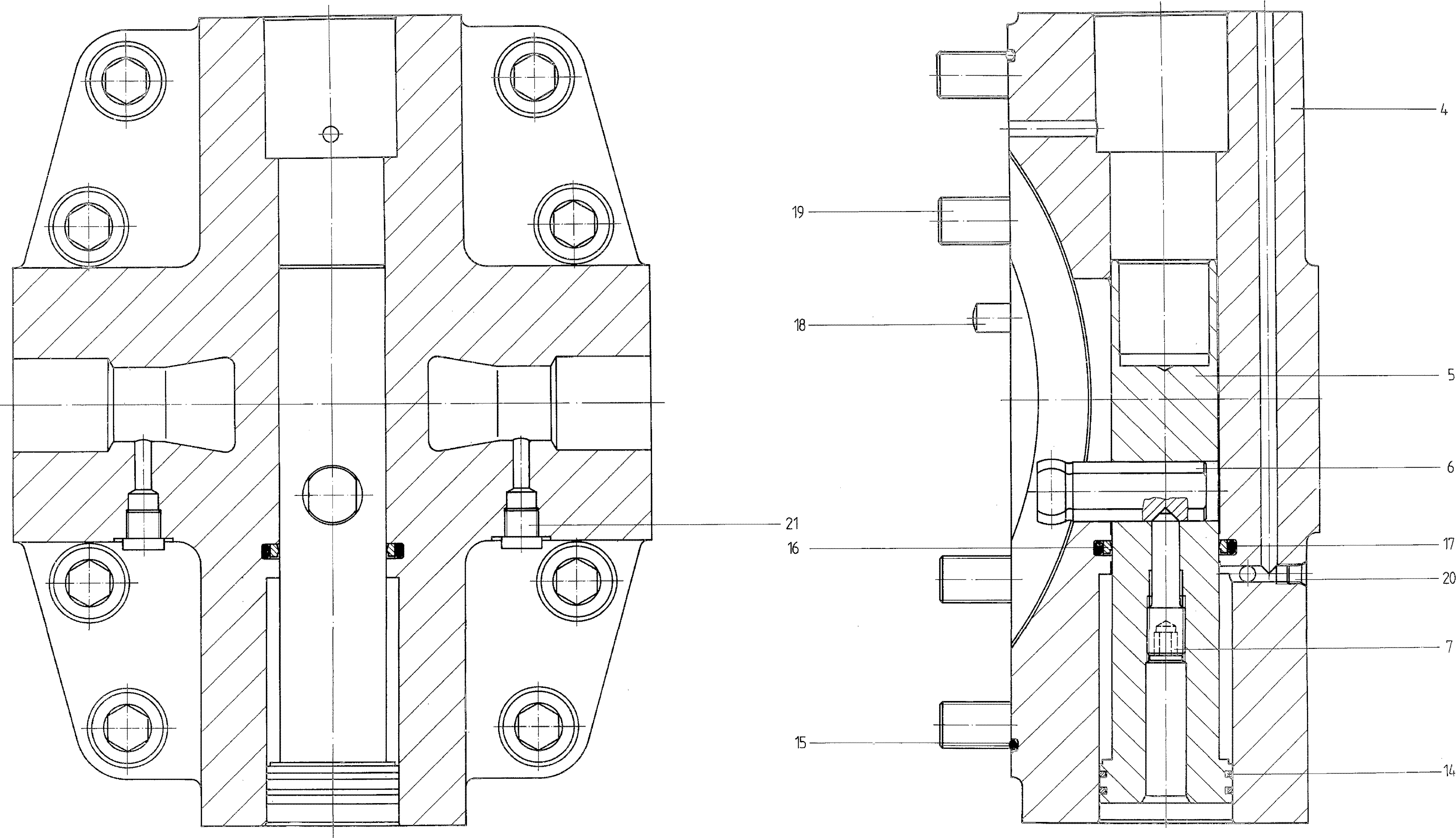

Assembly
ADJUSTING PIECER910960707
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910939725 | COVER PLATE | 1 | ||
| R902538865 | POSITIONING PISTON | 1 | ||
| R902413011 | POSITIONING STUD | 1 | ||
| R902475687 | SETSCREW | 1 | ||
| R910907604 | RECTANGULAR RINGD | 2 | ||
| R910960710 | O-RINGD | 1 | ||
| R910916878 | ROD SEALD | 1 | ||
| R910112836 | O-RINGD | 1 | ||
| R910517895 | STRAIGHT PIN | 2 | ||
| R902572931 | SOCKET HEAD CAP SCREW | 8 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909151979 | SCREW PLUGD | 2 |
