Assembly

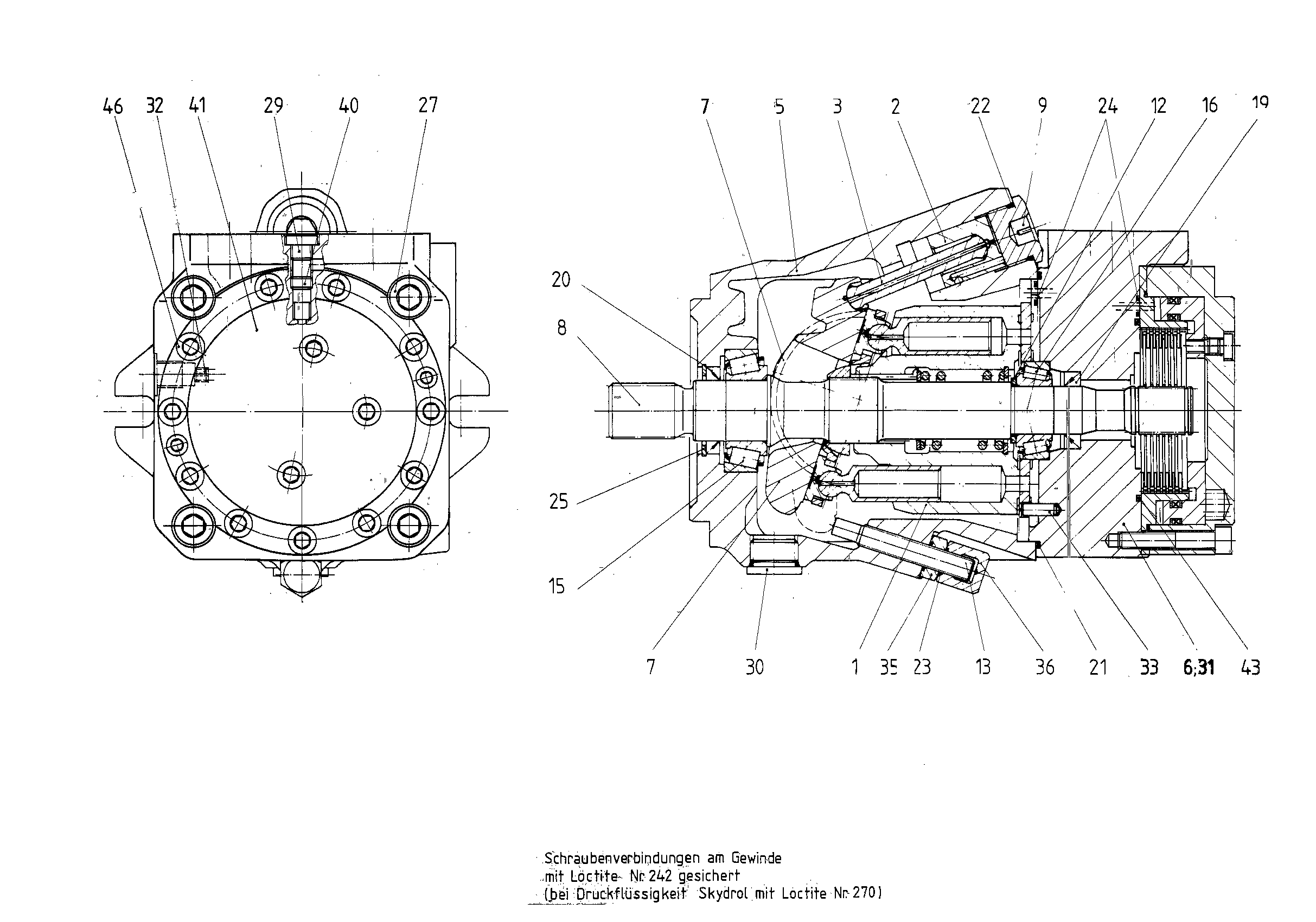

BASE UNITR910961276
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902435770 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910928600 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R910933802 | MOTOR HOUSING | 1 | ||
| 6 | R910930889 | CONNECTION PLATE | 1 | |
| R902443505 | SWASH PLATE | 1 | ||
| 8 | R902417399 | DRIVE SHAFT | 1 | |
| R902447686 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910933408 | STOP SCREW | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| 17 | R910933793 | BEARING SHELL | 2 | |
| R910900853 | SHAFT SEALING RING | 1 | ||
| R910985471 | SHAFT SEALING RINGD | 1 | ||
| 21 | R913052051 | O-RINGD | 1 | |
| 23 | R910514691 | O-RINGD | 2 | |
| R910942134 | R-RINGD | 2 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910126497 | SOCKET HEAD CAP SCREW | 4 | ||
| R913011600 | SCREW PLUG | 1 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| 31 | R909831318 | DOUBLE BREAK-OFF PLUG | 3 | |
| R910436941 | NOZZLE | 1 | ||
| 33 | R902533908 | STRAIGHT PIN | 1 | |
| 35 | R910998240 | NUT | 1 | |
| R910904041 | CAP NUT | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 | ||
| R910941701 | BRAKE | 1 | ||
| R910977041 | O-RING | 1 | ||
| R910193216 | SOCKET HEAD CAP SCREW | 11 |
