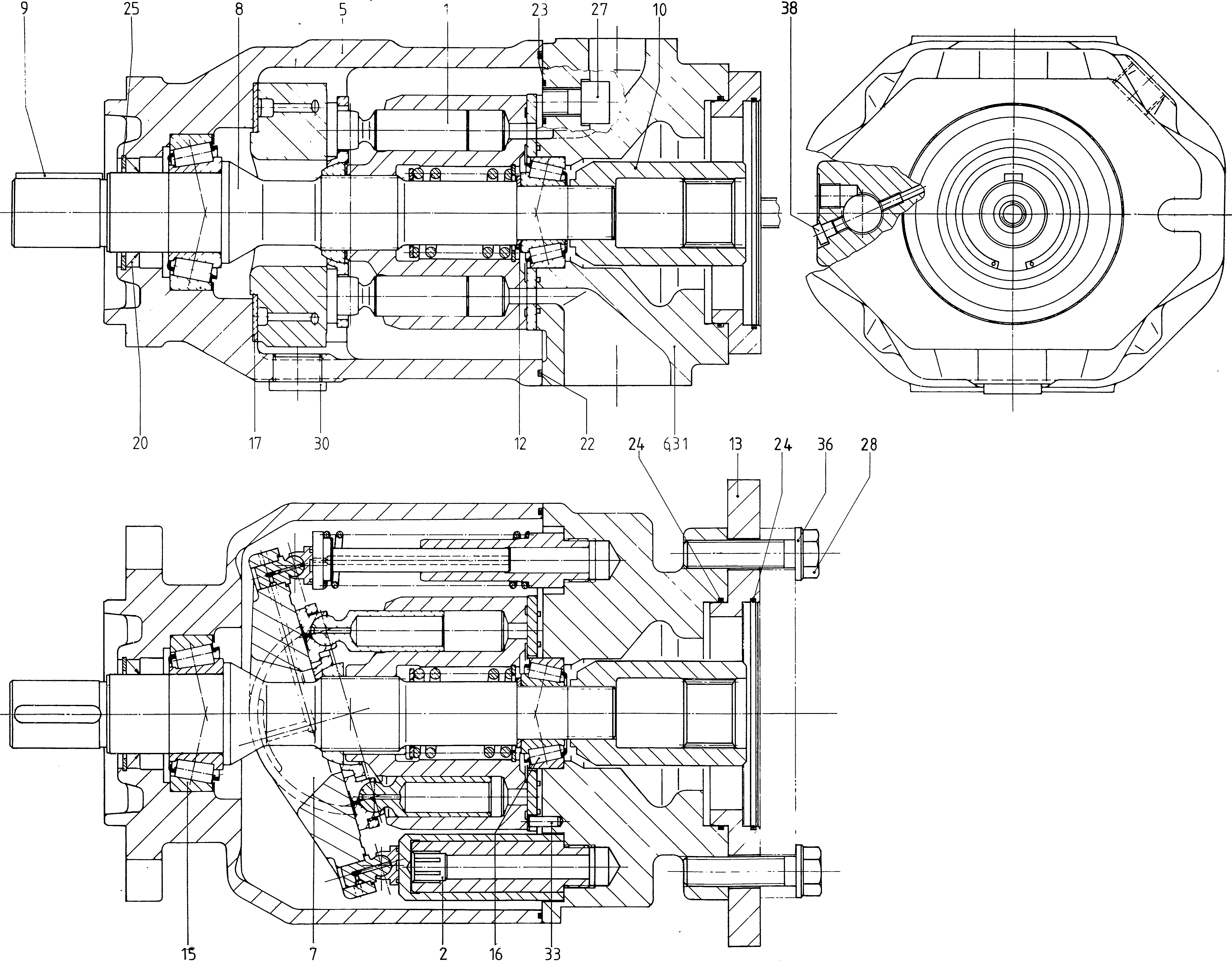

Assembly
BASE UNITR910962526
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910985877 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910921786 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R910987870 | PUMP HOUSING | 1 | ||
| R902543269 | CONNECTION PLATE | 1 | ||
| R902465983 | SWASH PLATE | 1 | ||
| R910987697 | DRIVE SHAFT | 1 | ||
| R910923559 | PARALLEL KEY | 1 | ||
| R910960193 | SPLINED COUPLING | 1 | ||
| R910906878 | ADJUSTMENT SHIM | 1 | ||
| R910913004 | INTERMEDIATE FLANGE | 1 | ||
| 14 | R910987869 | STOP RING | 1 | |
| R910906908 | TAPERED-ROLLER BEARING | 1 | ||
| R910906909 | TAPERED-ROLLER BEARING | 1 | ||
| R910906881 | BEARING SHELL | 2 | ||
| R909831179 | ROTARY SHAFT LIP SEALD | 1 | ||
| R910912756 | O-RINGD | 1 | ||
| R913050578 | R-RINGD | 4 | ||
| R910186961 | O-RINGD | 1 | ||
| R910917283 | O-RING | 1 | ||
| R909832149 | RETAINING RING | 1 | ||
| R910389714 | SOCKET HEAD CAP SCREW | 4 | ||
| R910124168 | HEXAGON SCREW | 2 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 | |
| R902650192 | WASHER | 2 |
