Assembly

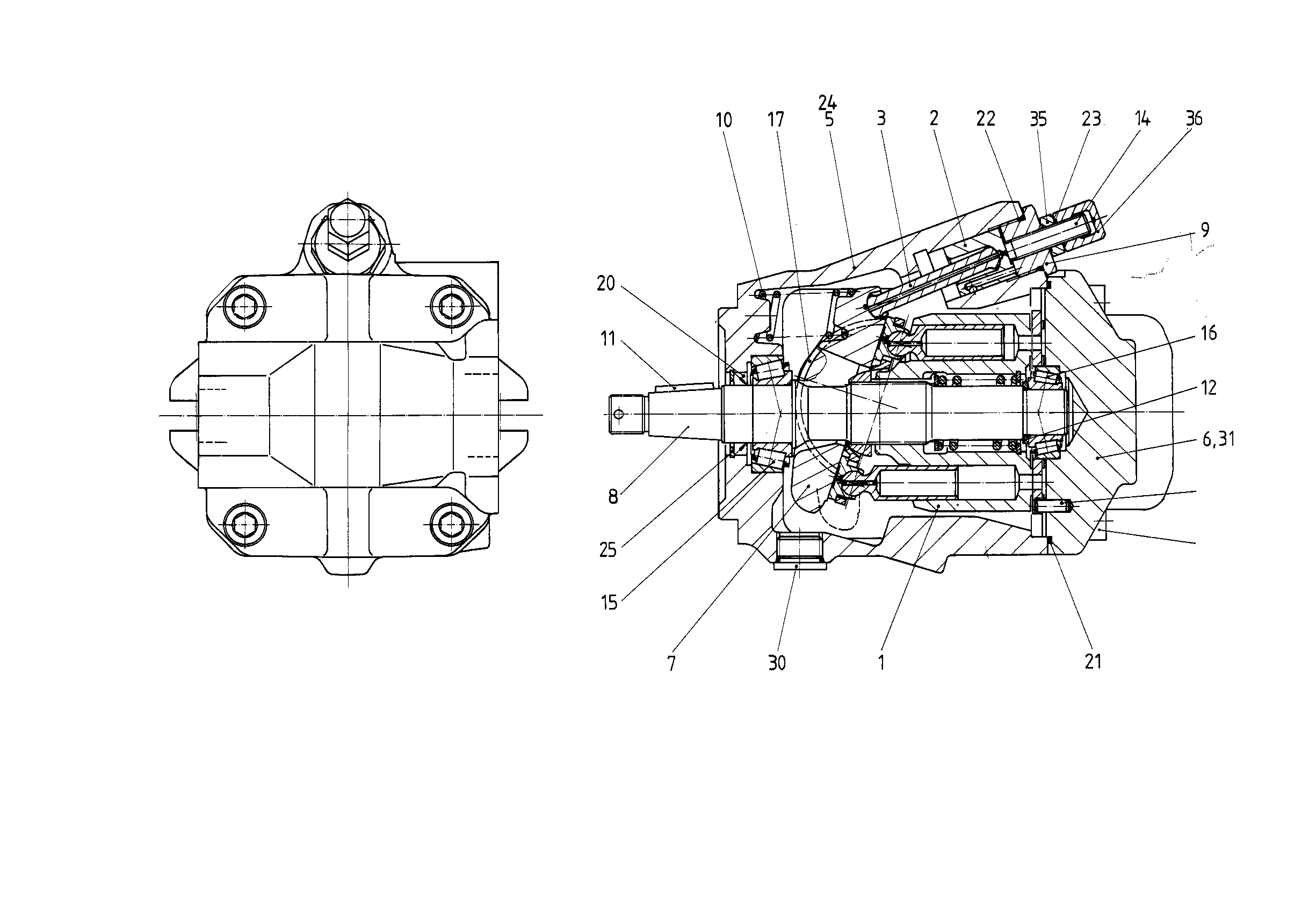

BASE UNITR910963163
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902435270 | ROTARY GROUP Assembly parts list →L | 1 | |
| R910928600 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R910933806 | PUMP HOUSING | 1 | ||
| R910966346 | CONNECTION PLATE | 1 | ||
| 7 | R902437705 | SWASH PLATE | 1 | |
| 8 | R902417382 | DRIVE SHAFT | 1 | |
| 9 | R902516339 | SCREW PLUG | 1 | |
| R910928606 | COMPRESSION SPRING | 1 | ||
| 11 | R910751138 | PARALLEL KEY | 1 | |
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| 14 | R902532354 | STOP SCREW | 1 | |
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933793 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R913052051 | O-RINGD | 1 | ||
| R910514691 | O-RINGD | 2 | ||
| 24 | R910942134 | R-RINGD | 1 | |
| R902403814 | RETAINING RING | 1 | ||
| 27 | R910121142 | SOCKET HEAD CAP SCREW | 4 | |
| R909153339 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 33 | R902533908 | STRAIGHT PIN | 1 | |
| R910998240 | NUT | 1 | ||
| R910904041 | CAP NUT | 1 |
