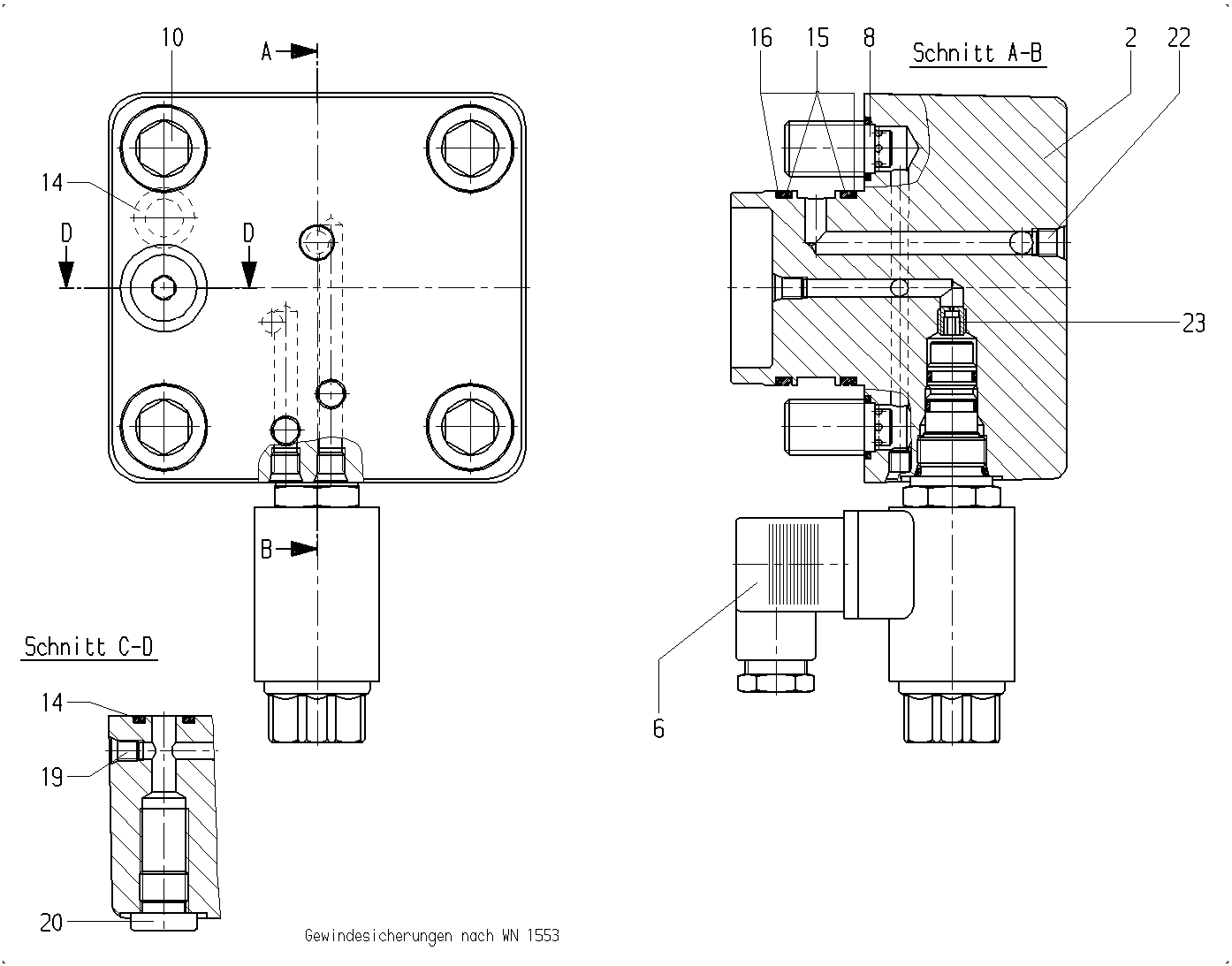

Assembly
CONTROL PARTR910964844
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910964790 | CONTROL HOUSING | 1 | ||
| R902453750 | SEAT VALVE Assembly parts list →L | 1 | ||
| R910974659 | HY-CHECK VALVE | 2 | ||
| R909153934 | SOCKET HEAD CAP SCREW | 4 | ||
| 13 | R910415537 | O-RINGD | 2 | |
| R910523003 | O-RINGD | 2 | ||
| R910977031 | O-RINGD | 2 | ||
| R910939130 | BACKUP RINGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910594253 | THROTTLE SCREW | 1 |
