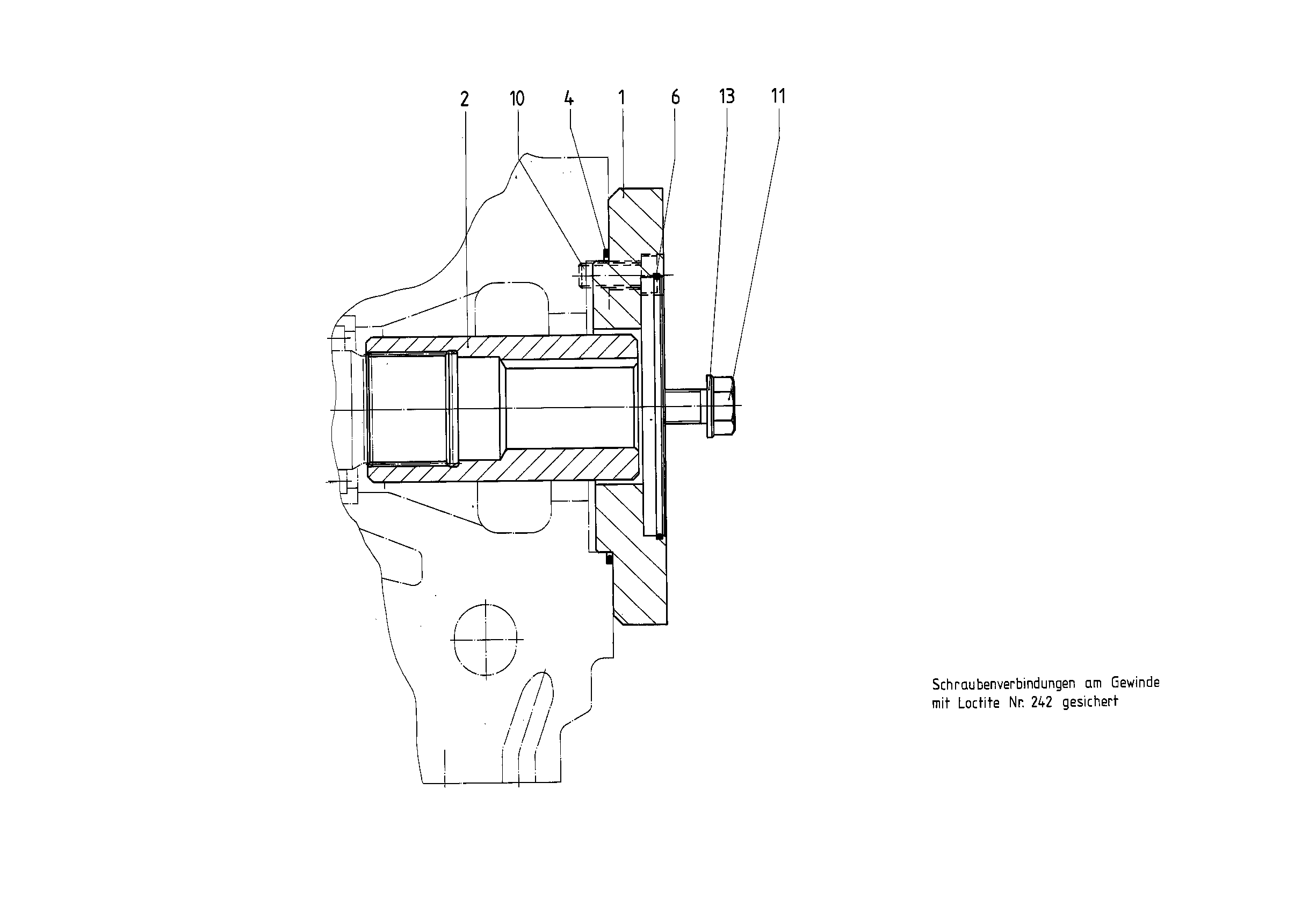

Assembly
ATTACHMENT KITR910966588
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910912927 | INTERMEDIATE FLANGE | 1 | ||
| R910924360 | HUB | 1 | ||
| R910830992 | O-RINGD | 1 | ||
| R910917283 | O-RINGD | 1 | ||
| R910118958 | SOCKET HEAD CAP SCREW | 4 | ||
| R910124214 | HEXAGON SCREW | 2 | ||
| R910186767 | WASHER | 2 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910912927 | INTERMEDIATE FLANGE | 1 | ||
| R910924360 | HUB | 1 | ||
| R910830992 | O-RINGD | 1 | ||
| R910917283 | O-RINGD | 1 | ||
| R910118958 | SOCKET HEAD CAP SCREW | 4 | ||
| R910124214 | HEXAGON SCREW | 2 | ||
| R910186767 | WASHER | 2 |
