Assembly

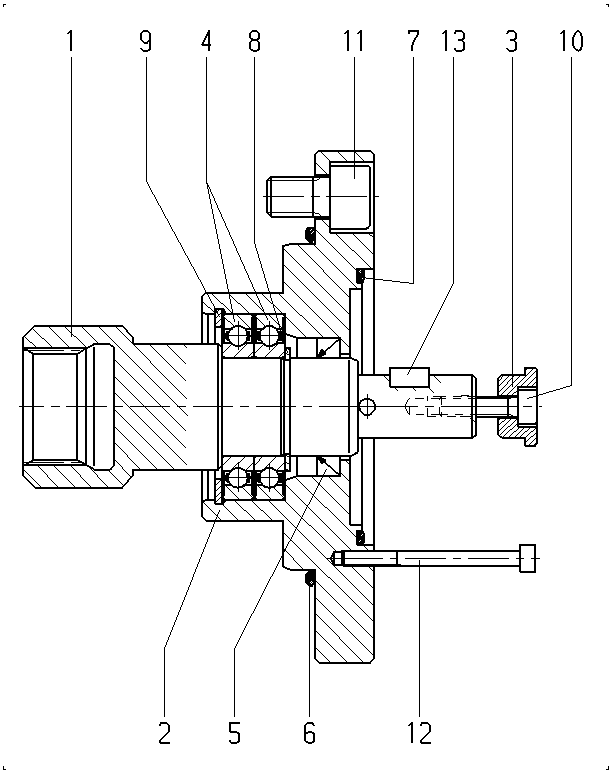

TACHOMETER DRIVE SHAFTR910968756
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910968759 | TACHOMETER SHAFT | 1 | ||
| R910968760 | INTERMEDIATE FLANGE | 1 | ||
| R910960593 | PRESSURE DISK | 1 | ||
| R910903613 | DEEP-GROOVE BALL BEARING | 2 | ||
| R910794325 | SHAFT SEALING RING | 1 | ||
| R910111945 | O-RING | 1 | ||
| R910977063 | O-RING | 1 | ||
| R910105783 | RETAINING RING | 1 | ||
| R910150576 | RETAINING RING | 1 | ||
| R910120111 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083057 | SOCKET HEAD CAP SCREW | 2 | ||
| R910926143 | SOCKET HEAD CAP SCREW | 4 | ||
| R910334316 | PARALLEL KEY | 1 |
