Assembly

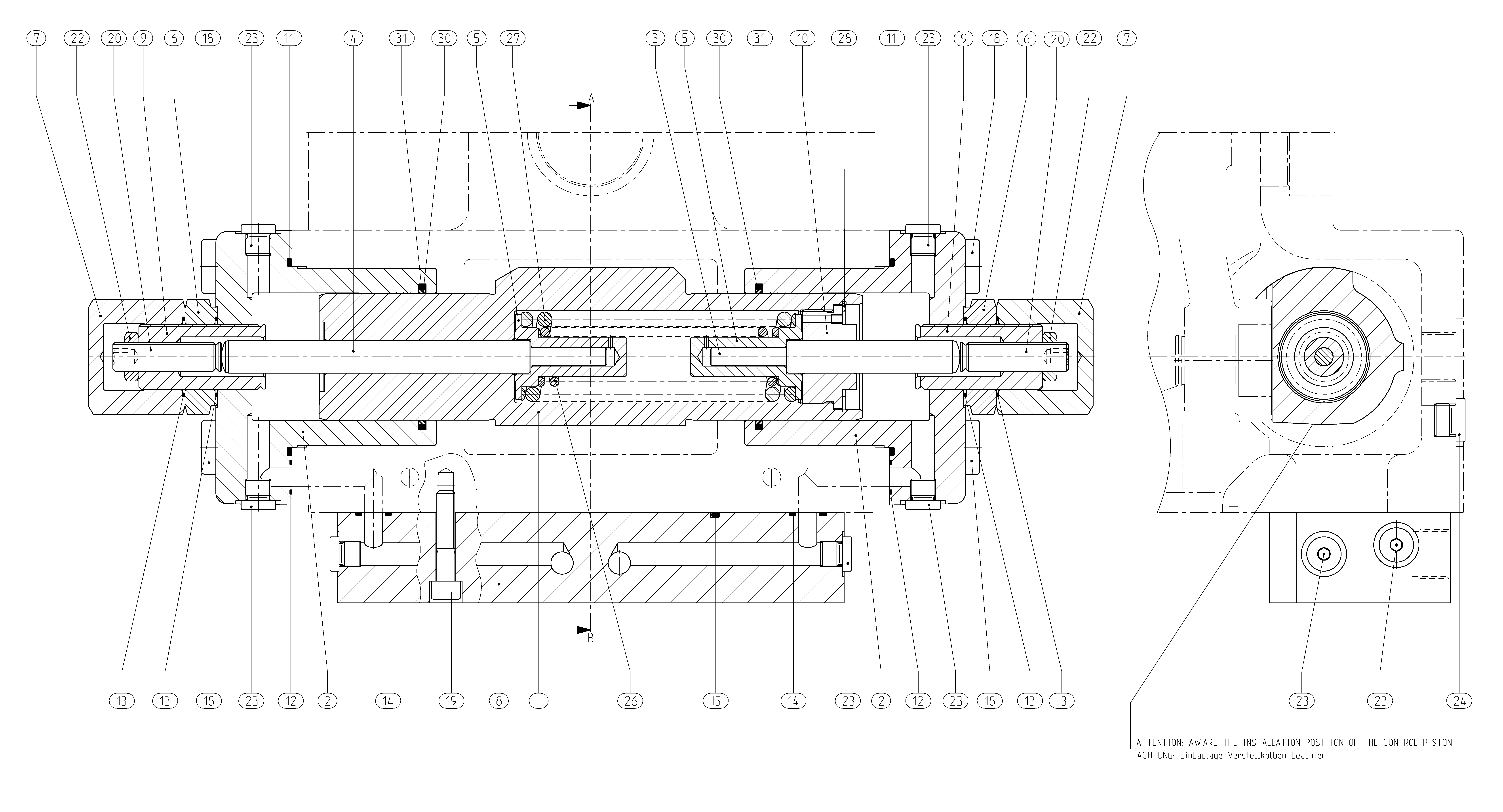

ADJUSTING PIECER910969604
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902530761 | ADJUSTING PISTON | 1 | ||
| R910969201 | PISTON HOUSING | 2 | ||
| R902404057 | BOLT | 1 | ||
| R902404058 | BOLT | 1 | ||
| R902404059 | SPRING DISK | 2 | ||
| R910902827 | NUT | 2 | ||
| R910902828 | CAP NUT | 2 | ||
| R910963288 | INTERMEDIATE PLATE | 1 | ||
| R902519601 | STOP SCREW | 2 | ||
| R902519846 | PISTON GUIDE | 1 | ||
| R910977052 | O-RINGD | 2 | ||
| R910514993 | O-RINGD | 2 | ||
| R910911739 | O-RINGD | 4 | ||
| R910514985 | O-RINGD | 4 | ||
| R910914340 | O-RINGD | 1 | ||
| R902572932 | SOCKET HEAD CAP SCREW | 8 | ||
| R910121266 | SOCKET HEAD CAP SCREW | 6 | ||
| R902519537 | STUD BOLT | 2 | ||
| R910127116 | HEXAGON NUT | 2 | ||
| R909151979 | SCREW PLUGD | 14 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R902404061 | COMPRESSION SPRING | 1 | ||
| R902404060 | COMPRESSION SPRING | 1 | ||
| R902650280 | RETAINING RING | 1 | ||
| R902650987 | SLIDE RING SEALD | 2 | ||
| R910478377 | O-RINGD | 2 |
