Assembly

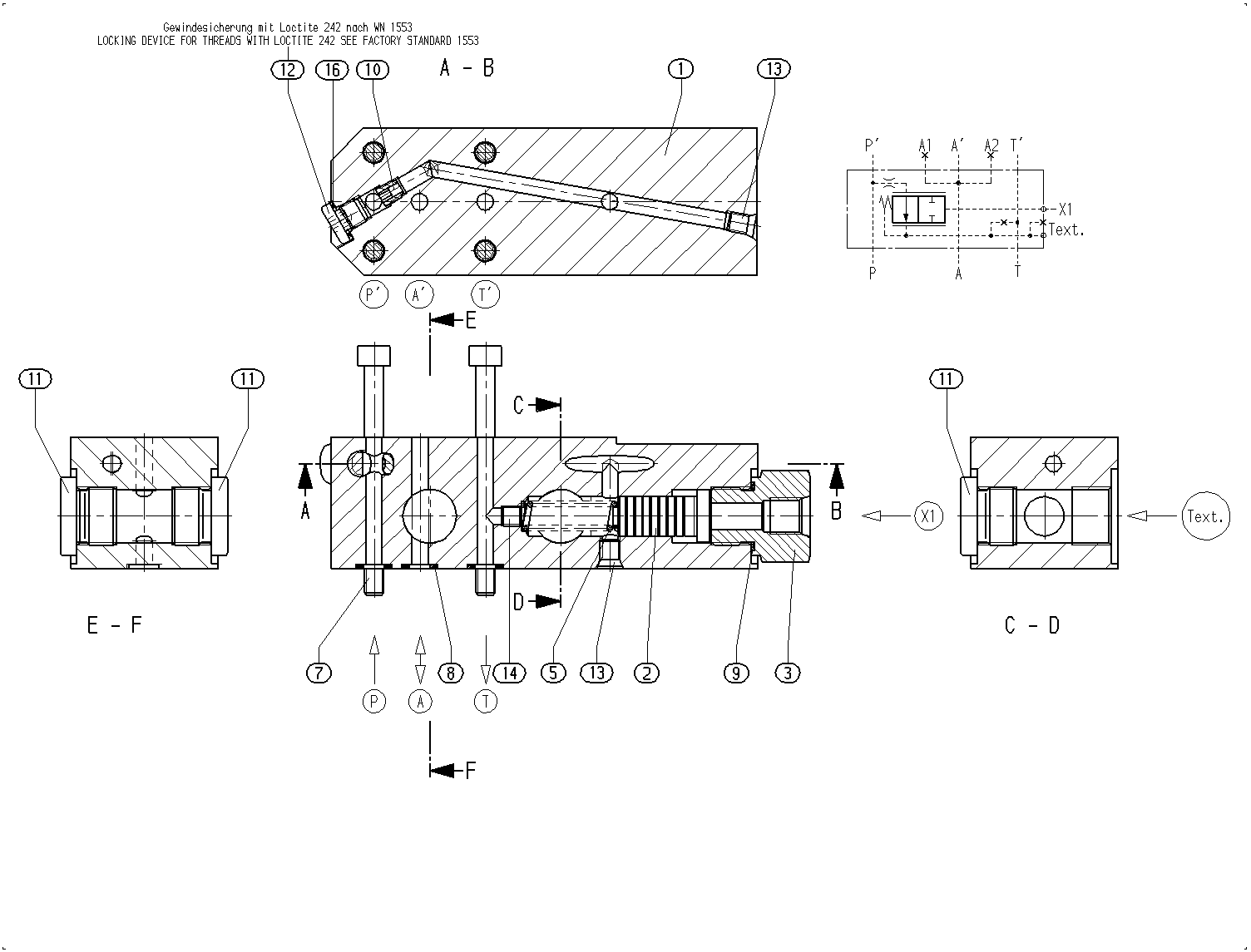

FLUSHING VALVER910969719
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910967526 | FLUSHING VALVE HOUSING | 1 | ||
| R902472199 | FLUSHING PISTON | 1 | ||
| 3 | R910967529 | REDUCTION THREADED JOINT | 1 | |
| 5 | R910074535 | COMPRESSION SPRING | 1 | |
| R910514497 | O-RING | 3 | ||
| 9 | R910744603 | SEAL RING | 1 | |
| R910967551 | NOZZLE | 1 | ||
| 11 | R909156651 | SCREW PLUG | 3 | |
| 12 | R910933812 | SCREW PLUG | 1 | |
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| 14 | R910100943 | SETSCREW | 1 | |
| R909152493 | SEAL RING | 1 |
