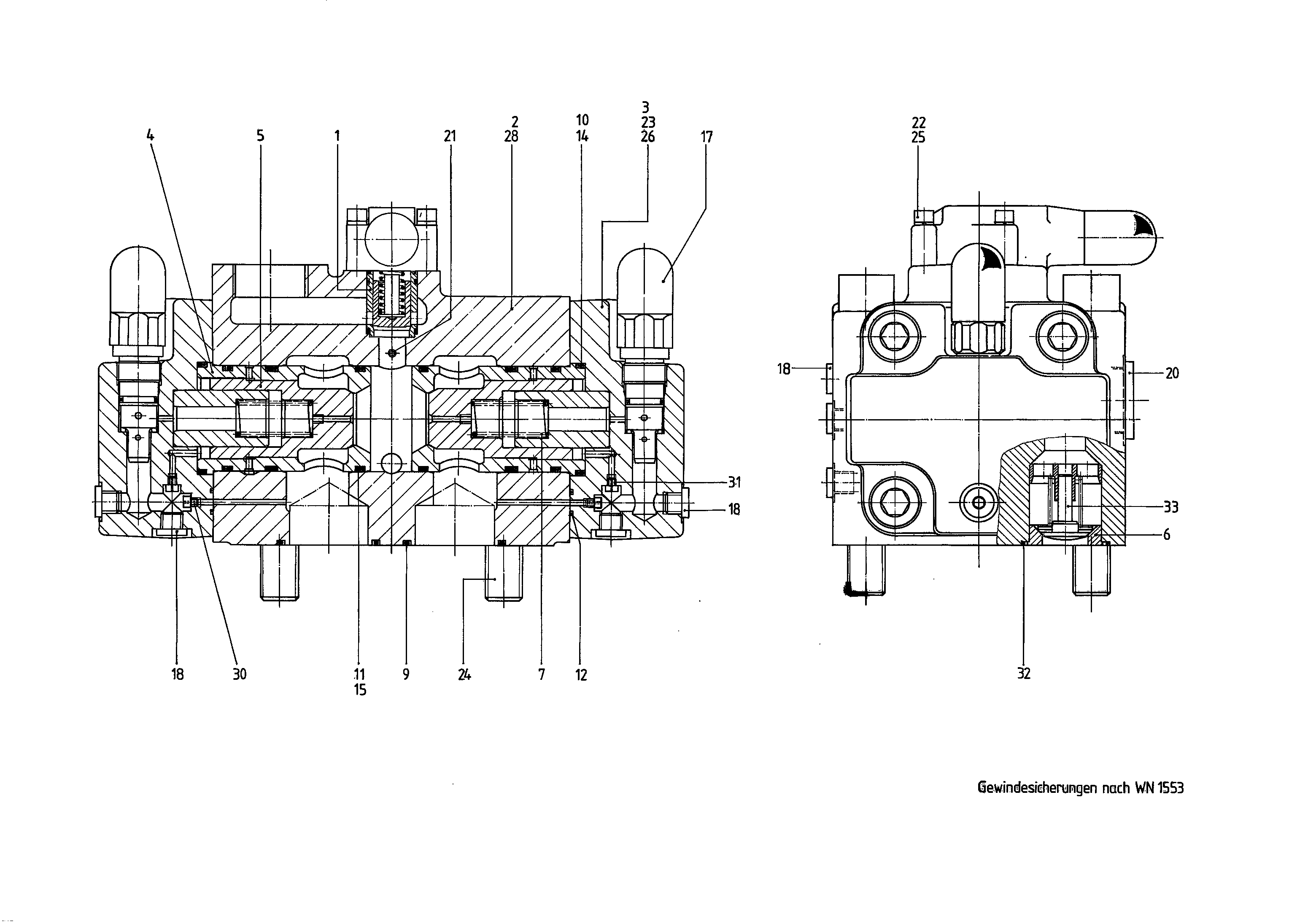

Assembly
AXIAL-PISTON PUMPR910970289
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910938769 | PRESSURE RELIEF VALVE | 1 | ||
| R910964073 | VALVE HOUSING | 1 | ||
| R910923331 | COVER Assembly parts list →L | 2 | ||
| R910733393 | VALVE INSERT | 2 | ||
| R910733407 | VALVE SPOOL | 2 | ||
| R910964075 | VALVE SEAT | 1 | ||
| R910051365 | COMPRESSION SPRING | 2 | ||
| R910187119 | O-RINGD | 2 | ||
| R910473227 | O-RINGD | 2 | ||
| R910938777 | O-RINGD | 6 | ||
| R910080543 | O-RINGD | 2 | ||
| R910650927 | BACKUP RINGD | 2 | ||
| R910650935 | BACKUP RINGD | 8 | ||
| R900438939 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909153930 | SCREW PLUGD | 8 | ||
| R909156979 | SCREW PLUGD | 1 | ||
| R910100587 | NOZZLE | 1 | ||
| R910109509 | SOCKET HEAD CAP SCREW | 4 | ||
| R910120782 | SOCKET HEAD CAP SCREW | 8 | ||
| R910121045 | SOCKET HEAD CAP SCREW | 4 | ||
| R910100757 | SPRING LOCK WASHER | 4 | ||
| R910100838 | SPRING LOCK WASHER | 8 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R910116084 | NOZZLE | 2 | ||
| R910100595 | NOZZLE | 2 | ||
| R910535834 | O-RING | 1 | ||
| R910990093 | VALVE INSERT | 1 |
