Assembly

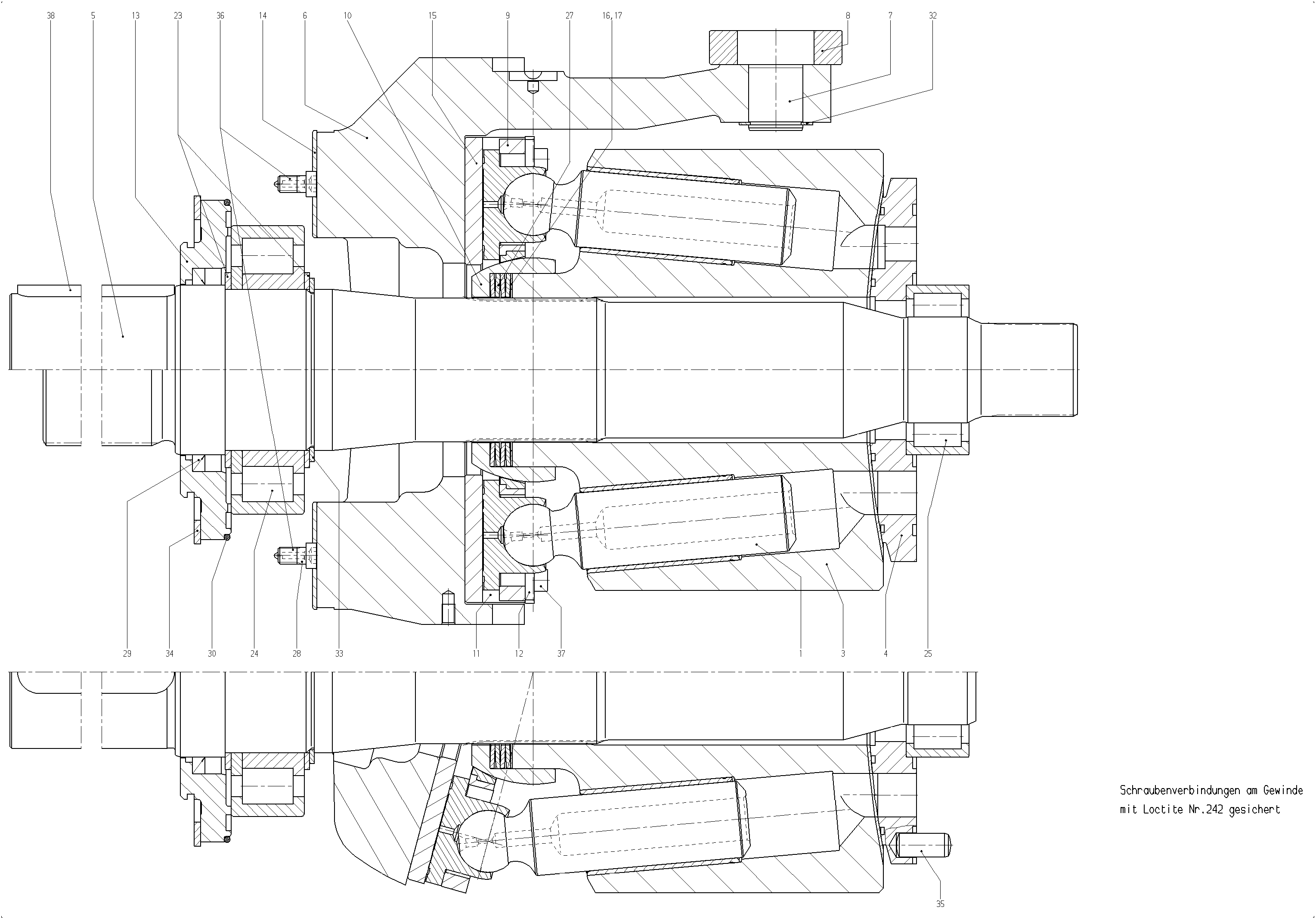

ROTARY GROUPR910970955
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910990174 | PISTON PAD | 9 | ||
| R910934812 | CYLINDER | 1 | ||
| R910970277 | DISTRIBUTOR PLATE | 1 | ||
| R902408423 | DRIVE SHAFT | 1 | ||
| R910946501 | SWASH PLATE | 1 | ||
| R910935543 | DRIVER PIVOT | 1 | ||
| R910935544 | SLIDER | 1 | ||
| R910942064 | RETAINING PLATE | 1 | ||
| R910935550 | RETAINING BALL | 1 | ||
| R910965067 | SPACER SEGMENT | 4 | ||
| R902570178 | SEGMENT | 4 | ||
| R902404946 | SEALING FLANGE | 1 | ||
| R910946533 | BEARING SHELL | 2 | ||
| R910983271 | SLIDING DISC | 1 | ||
| R910960171 | SHIM RING | 1 | ||
| R910960755 | SHIM RING | 1 | ||
| R910800096 | SUPPORTING DISC | 2 | ||
| R902572611 | CYL. ROLLER BEARING | 1 | ||
| R910978527 | CYL. ROLLER BEARING | 1 | ||
| R910935529 | CUP-SPRING STACK | 1 | ||
| R910934889 | SHAFT SEALING RING | 1 | ||
| R902650567 | O-RINGD | 1 | ||
| R910187976 | RETAINING RING | 1 | ||
| R910436674 | RETAINING RING | 1 | ||
| R910127701 | RETAINING RING | 1 | ||
| R910932883 | SETTING SCREW | 2 | ||
| R910109525 | SOCKET HEAD CAP SCREW | 8 | ||
| R910638269 | PARALLEL KEY | 1 | ||
| 41 | R910109592 | SOCKET HEAD CAP SCREW | 6 |
