Assembly

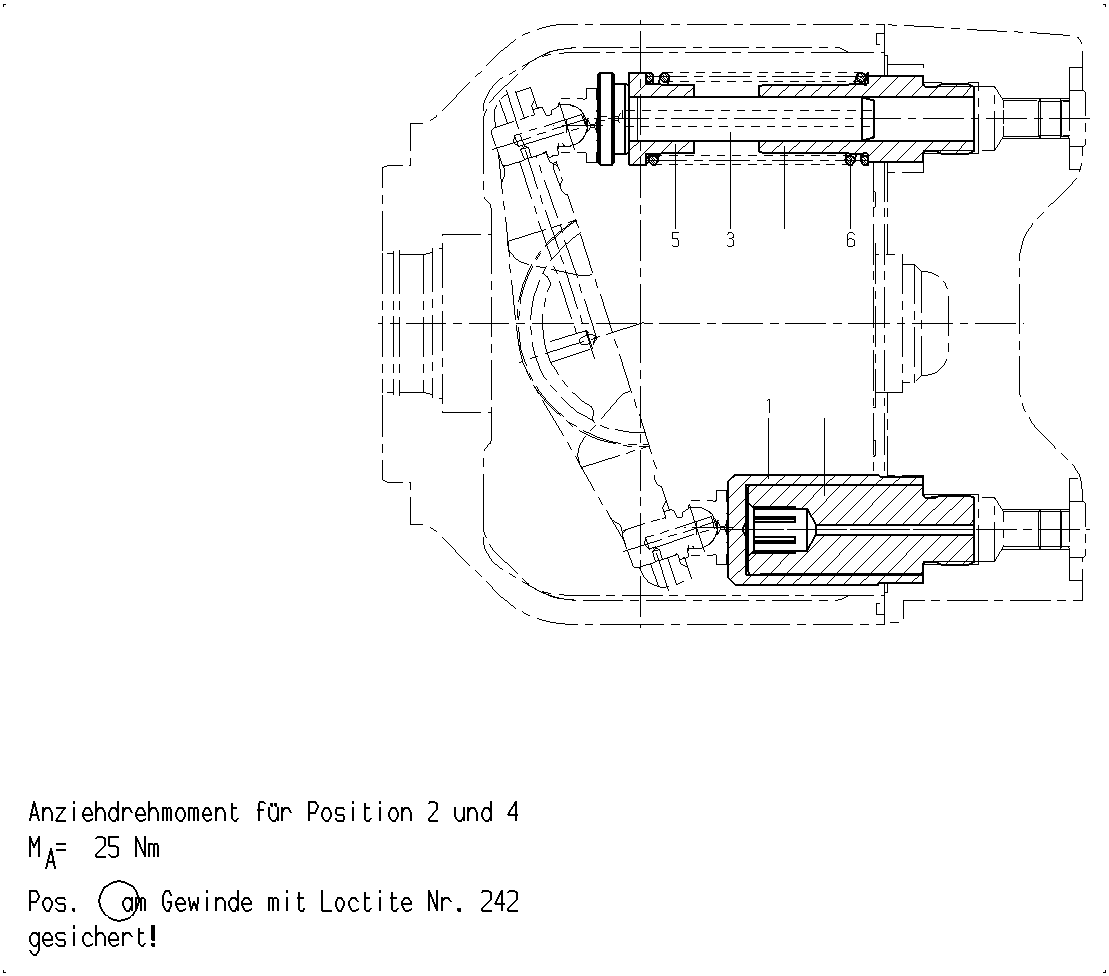

ADJUSTING PIECER910971592
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910910645 | ADJUSTING PISTON | 1 | ||
| 2 | R910961846 | PISTON GUIDE | 1 | |
| R910947500 | OPPOSED PISTON | 1 | ||
| 4 | R910947501 | PISTON GUIDE | 1 | |
| R910971680 | SPRING DISK | 1 | ||
| R910947502 | COMPRESSION SPRING | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910910645 | ADJUSTING PISTON | 1 | ||
| 2 | R910961846 | PISTON GUIDE | 1 | |
| R910947500 | OPPOSED PISTON | 1 | ||
| 4 | R910947501 | PISTON GUIDE | 1 | |
| R910971680 | SPRING DISK | 1 | ||
| R910947502 | COMPRESSION SPRING | 1 |
