Assembly

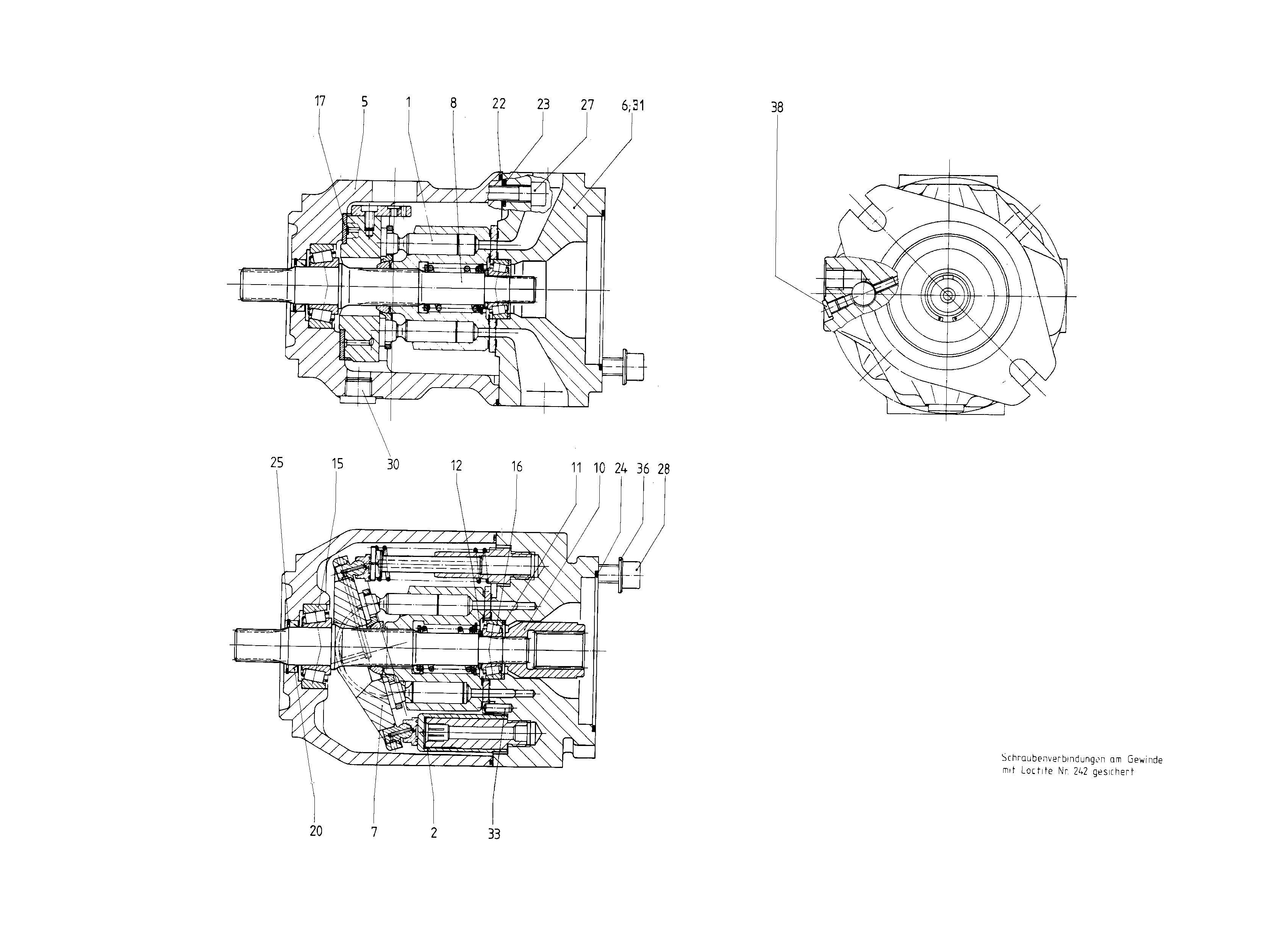

BASE UNITR910971679
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902439599 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R910935918 | ADJUSTING PIECE Assembly parts list →L | 1 | |
| R902550220 | PUMP HOUSING | 1 | ||
| 6 | R910997458 | CONNECTION PLATE | 1 | |
| R910961001 | SWASH PLATE Assembly parts list →L | 1 | ||
| R902417371 | DRIVE SHAFT | 1 | ||
| R902400789 | ADJUSTMENT SHIM | 1 | ||
| 14 | R910987890 | STOP RING | 1 | |
| R902438109 | TAPERED-ROLLER BEARING | 1 | ||
| R902438110 | TAPERED-ROLLER BEARING | 1 | ||
| R910902778 | BEARING SHELL | 2 | ||
| R910988019 | SHAFT SEALING RINGD | 1 | ||
| R910976090 | O-RINGD | 1 | ||
| R913052104 | R-RINGD | 4 | ||
| 24 | R910640182 | O-RINGD | 1 | |
| R902403815 | RETAINING RING | 1 | ||
| R910110191 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| 31 | R910942668 | BREAK-OFF PLUG | 1 | |
| R902533908 | STRAIGHT PIN | 1 | ||
| 34 | R913011609 | SCREW PLUG | 1 |
