Assembly

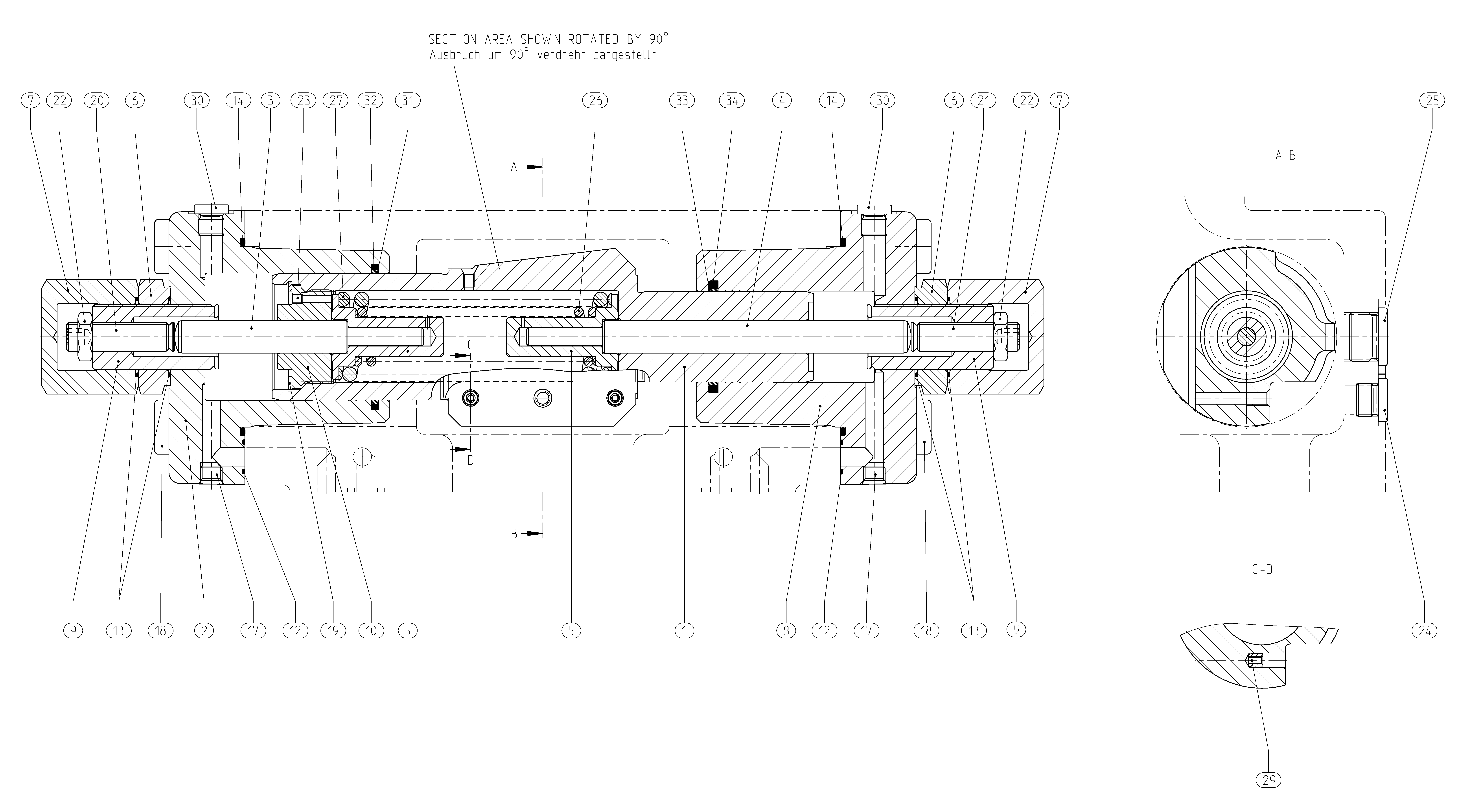

ADJUSTING PIECER910971760
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902530760 | ADJUSTING PISTON | 1 | ||
| R910969201 | PISTON HOUSING | 1 | ||
| R902404057 | BOLT | 1 | ||
| R902404058 | BOLT | 1 | ||
| R902404059 | SPRING DISK | 2 | ||
| R910902827 | NUT | 2 | ||
| R910902828 | CAP NUT | 2 | ||
| R910915758 | PISTON HOUSING | 1 | ||
| R902519601 | STOP SCREW | 2 | ||
| R902519846 | PISTON GUIDE | 1 | ||
| R910930792 | O-RINGD | 2 | ||
| R910904055 | O-RINGD | 4 | ||
| R910919988 | O-RINGD | 2 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R902572932 | SOCKET HEAD CAP SCREW | 8 | ||
| R902650280 | RETAINING RING | 1 | ||
| R902519537 | STUD BOLT | 1 | ||
| R902519537 | STUD BOLT | 1 | ||
| R910127116 | HEXAGON NUT | 2 | ||
| R909083489 | SETSCREW | 1 | ||
| R909156651 | SCREW PLUGD | 2 | ||
| R909156984 | SCREW PLUGD | 1 | ||
| R902404061 | COMPRESSION SPRING | 1 | ||
| R902404060 | COMPRESSION SPRING | 1 | ||
| R910933995 | NUT | 2 | ||
| R909153930 | SCREW PLUG | 6 | ||
| R902650987 | SLIDE RING SEAL | 1 | ||
| R910478377 | O-RING | 1 | ||
| R902650986 | SLIDE RING SEAL | 1 | ||
| R910221619 | O-RING | 1 |
