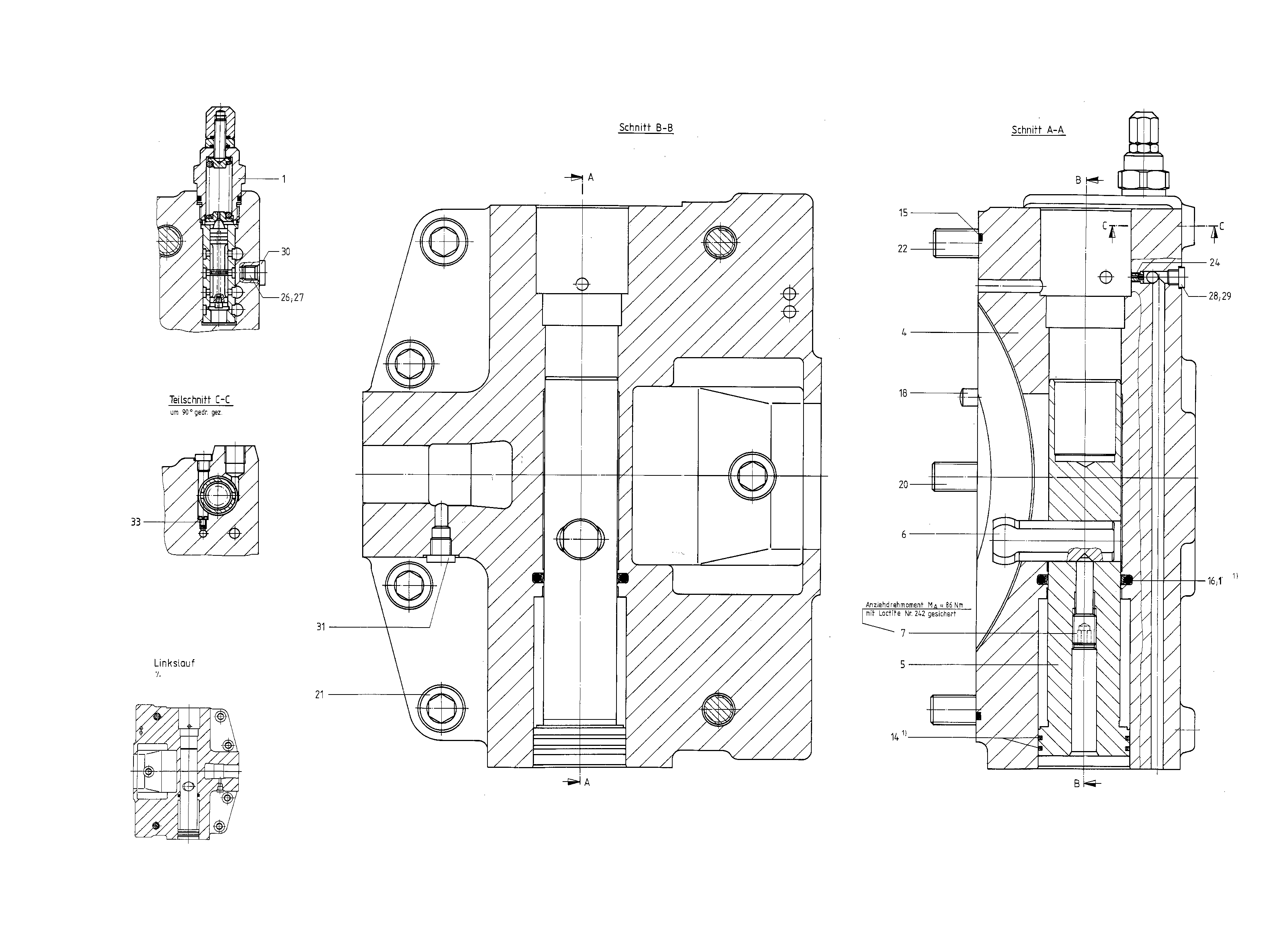

Assembly
ADJUSTING PIECER910971796
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902533148 | VALVE INSERT | 1 | ||
| R910963723 | COVER PLATE | 1 | ||
| R902538867 | POSITIONING PISTON | 1 | ||
| R902413012 | POSITIONING STUD | 1 | ||
| R902475687 | SETSCREW | 1 | ||
| R910925597 | RECTANGULAR RINGD | 2 | ||
| R910930901 | O-RINGD | 1 | ||
| R910925596 | ROD SEALD | 1 | ||
| 17 | R910977029 | O-RINGD | 1 | |
| R910517895 | STRAIGHT PIN | 2 | ||
| R902572930 | SOCKET HEAD CAP SCREW | 1 | ||
| R902572931 | SOCKET HEAD CAP SCREW | 4 | ||
| R910936226 | SOCKET HEAD CAP SCREW | 2 | ||
| R910836761 | NOZZLE | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909153364 | SCREW PLUG | 2 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R910945463 | SOCKET HEAD CAP SCREW | 1 |
