Assembly

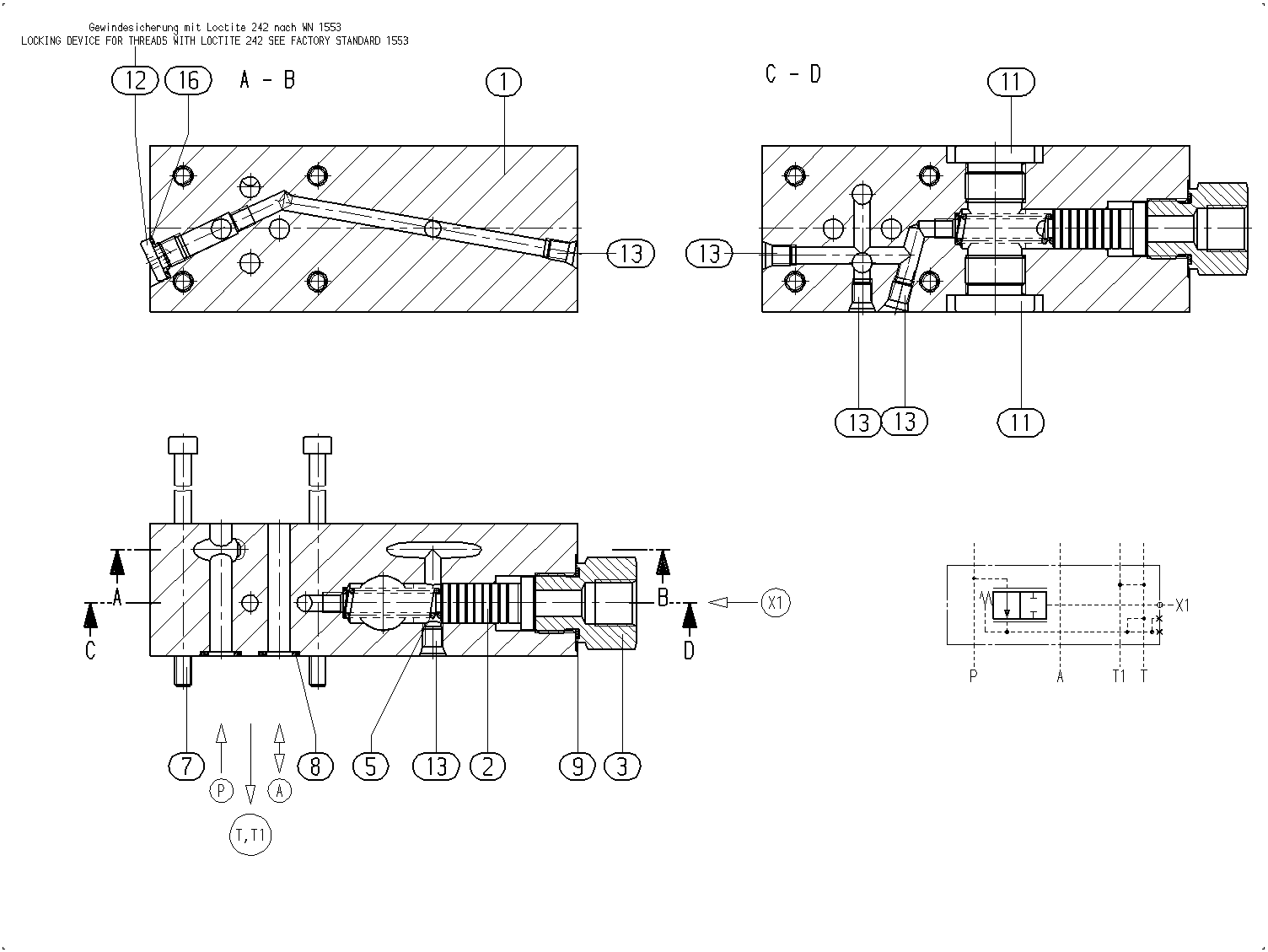

FLUSHING VALVER910974011
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910973947 | FLUSHING VALVE HOUSING | 1 | ||
| R902472199 | FLUSHING PISTON | 1 | ||
| R910967528 | REDUCTION THREADED JOINT | 1 | ||
| R910074535 | COMPRESSION SPRING | 1 | ||
| R910915346 | SOCKET HEAD CAP SCREW | 4 | ||
| R910593168 | O-RING | 4 | ||
| R910744603 | SEAL RING | 1 | ||
| R909156651 | SCREW PLUG | 2 | ||
| R910933812 | SCREW PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909152493 | SEAL RING | 1 |
