Assembly

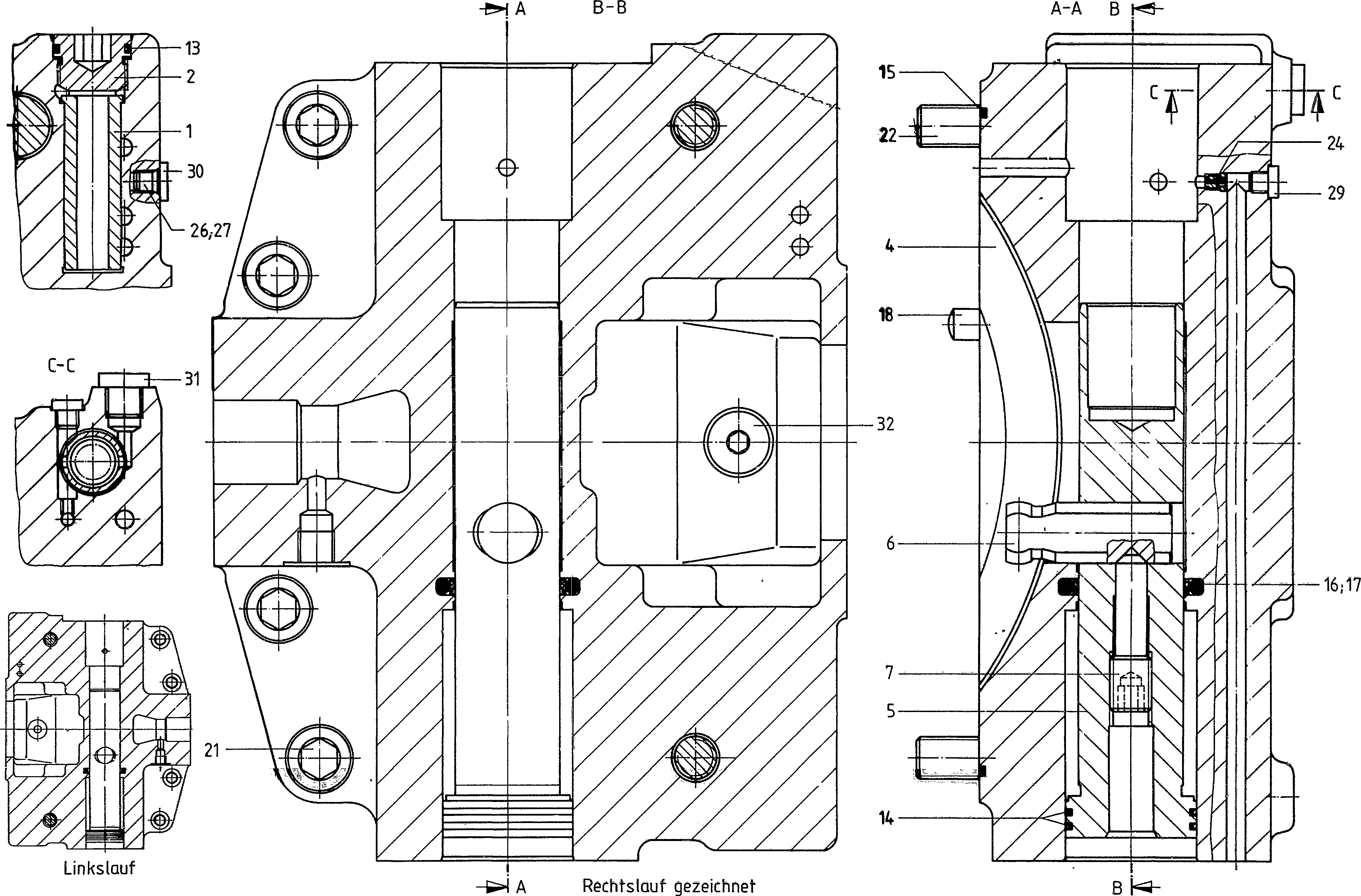

ADJUSTING PIECER910975290
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910975207 | BUSHING | 1 | ||
| R910975206 | SCREW PLUG | 1 | ||
| R910934548 | COVER PLATE | 1 | ||
| R902477242 | POSITIONING PISTON | 1 | ||
| R902413010 | POSITIONING STUD | 1 | ||
| R902475687 | SETSCREW | 1 | ||
| R910513547 | O-RING | 1 | ||
| R910802013 | RECTANGULAR RINGD | 2 | ||
| R910930567 | O-RINGD | 1 | ||
| R910907799 | ROD SEALD | 1 | ||
| R910103926 | O-RINGD | 1 | ||
| R910910938 | STRAIGHT PIN | 2 | ||
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| R910802651 | SOCKET HEAD CAP SCREW | 2 | ||
| R910836818 | NOZZLE | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909154024 | SCREW PLUGD | 2 | ||
| R909153364 | SCREW PLUG | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909153815 | SCREW PLUG | 1 |
