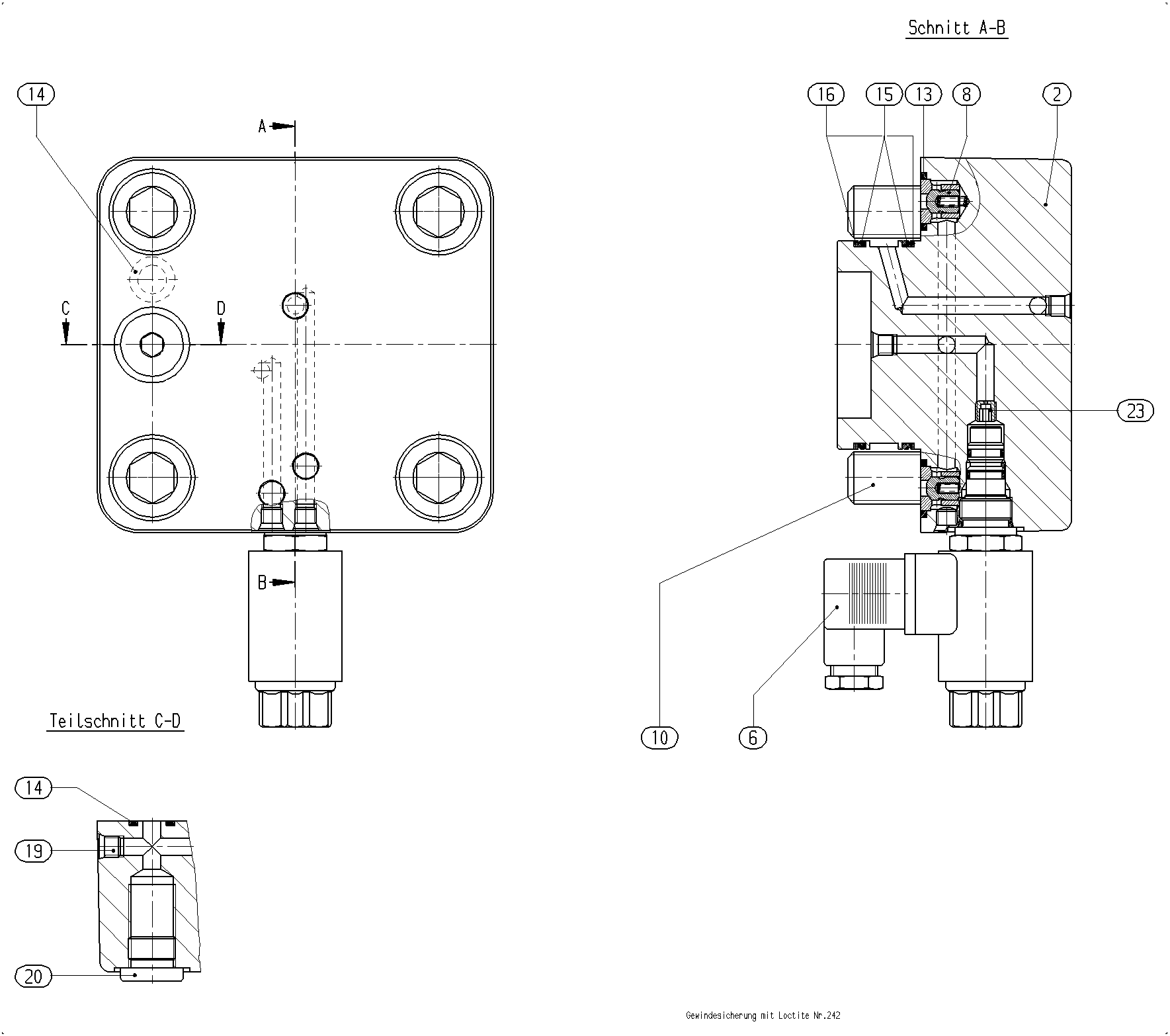

Assembly
CONTROL PARTR910975361
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910975366 | CONTROL HOUSING | 1 | ||
| R902453750 | SEAT VALVE Assembly parts list →L | 1 | ||
| R910974764 | HY-CHECK VALVE | 2 | ||
| R910705799 | SOCKET HEAD CAP SCREW | 4 | ||
| R910515574 | O-RINGD | 2 | ||
| R910518336 | O-RINGD | 2 | ||
| R910910194 | O-RINGD | 2 | ||
| R910948533 | BACKUP RINGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 4 | ||
| R909156651 | SCREW PLUGD | 1 | ||
| R910594253 | THROTTLE SCREW | 1 |
