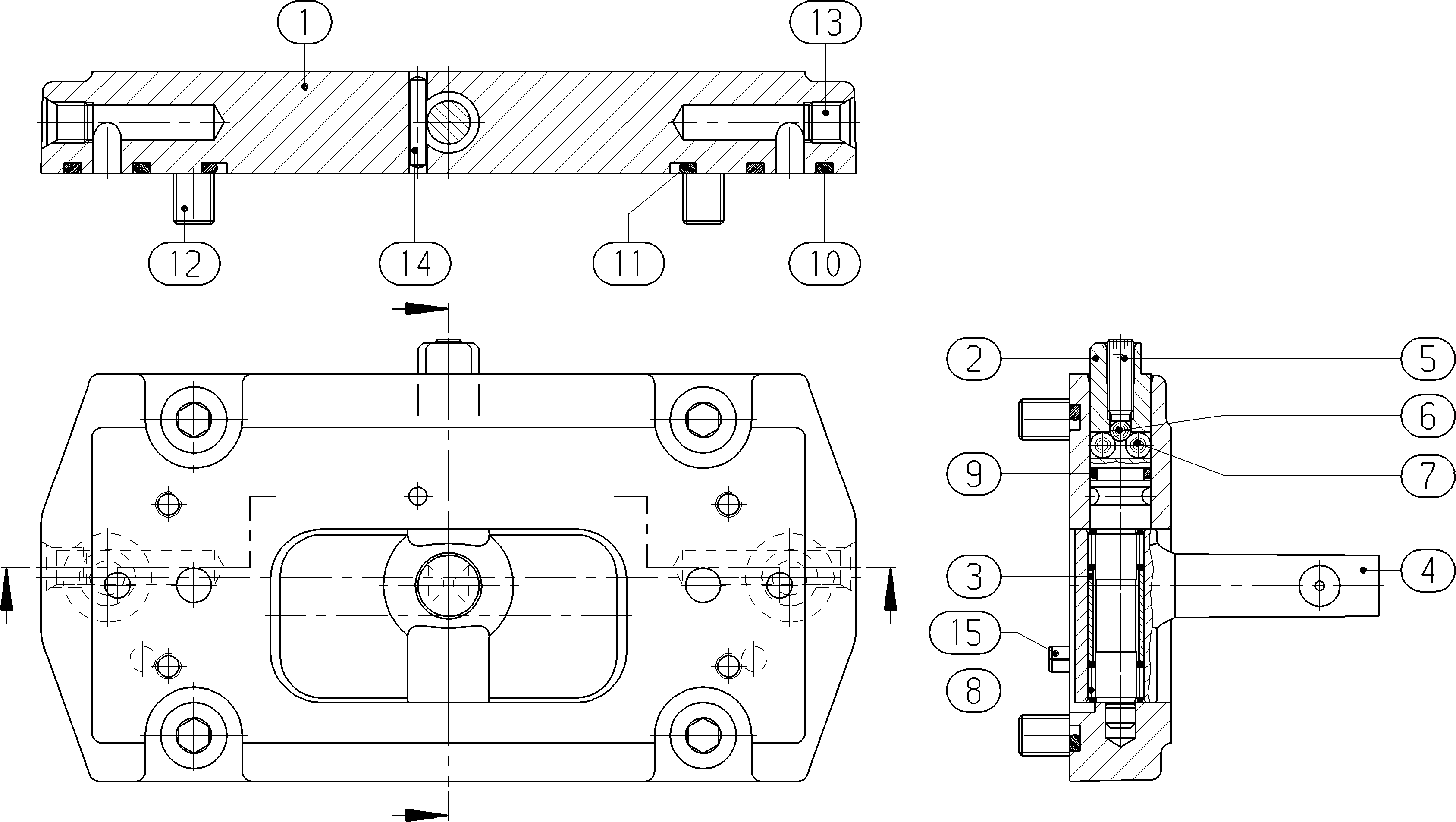

Assembly
INTERMEDIATE PLATER910977194
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910977197 | INTERMEDIATE PLATE | 1 | ||
| R910979176 | ECCENTRIC PIN | 1 | ||
| R910903147 | SPACER SLEEVE | 1 | ||
| R910976975 | LEVER | 1 | ||
| R910977212 | SETSCREW | 1 | ||
| R910199001 | BALL | 1 | ||
| R910150282 | BALL | 2 | ||
| R910903156 | NEEDLE-ROLLER ASSEMBLY | 2 | ||
| R910514543 | O-RING | 1 | ||
| R910523003 | O-RING | 2 | ||
| R902650323 | R-RING | 1 | ||
| R910109452 | SOCKET HEAD CAP SCREW | 4 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910903133 | NEEDLE-ROLLER | 1 | ||
| R910908892 | SLOTTED SPRING PIN | 2 |
