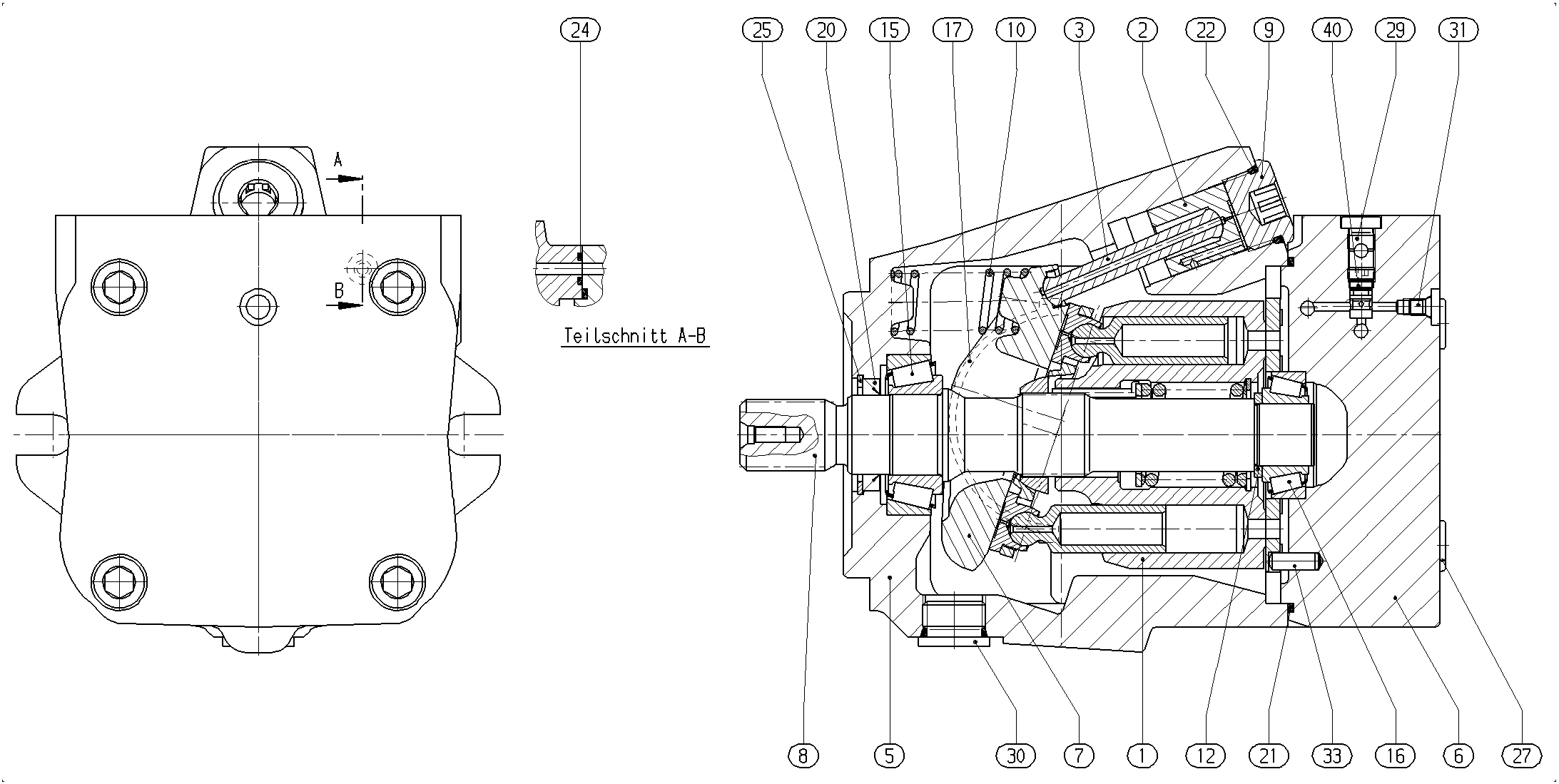

Assembly
BASE UNITR910979369
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902437377 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910928600 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R910933804 | PUMP HOUSING | 1 | ||
| R910993067 | CONNECTION PLATE | 1 | ||
| R902443505 | SWASH PLATE | 1 | ||
| R910992268 | DRIVE SHAFT | 1 | ||
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910928606 | COMPRESSION SPRING | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910933793 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R913052048 | O-RINGD | 1 | ||
| R910199044 | O-RINGD | 1 | ||
| R902403814 | RETAINING RING | 1 | ||
| R910110256 | SOCKET HEAD CAP SCREW | 4 | ||
| R913011608 | SCREW PLUG | 1 | ||
| R910967343 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910910177 | SHUTTLE VALVE | 1 |
