Assembly

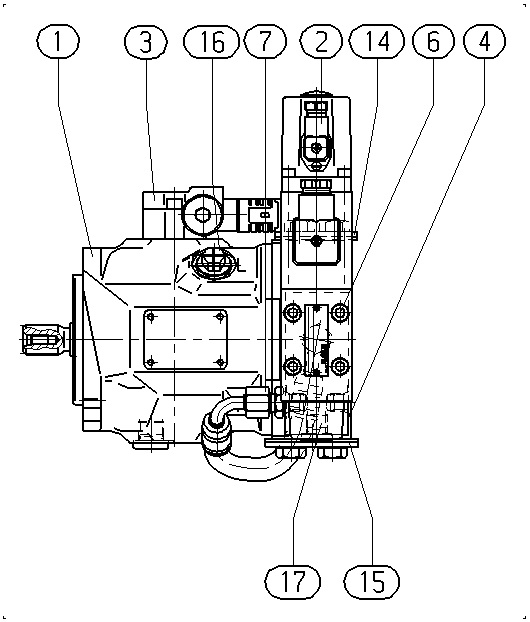

AXIAL-PISTON PUMPR910983129
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910979594 | BASE UNIT Assembly parts list →L | 1 | ||
| R910989733 | VALVE | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902404047 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910977098 | SOCKET HEAD CAP SCREW | 4 | ||
| R910979602 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R902400574 | FLANGE COVER | 1 | ||
| R902400578 | FLANGE COVER | 1 | ||
| R902602009 | SEAL SCREW | 1 | ||
| R909831377 | GUARD PLUG | 1 |
