Assembly

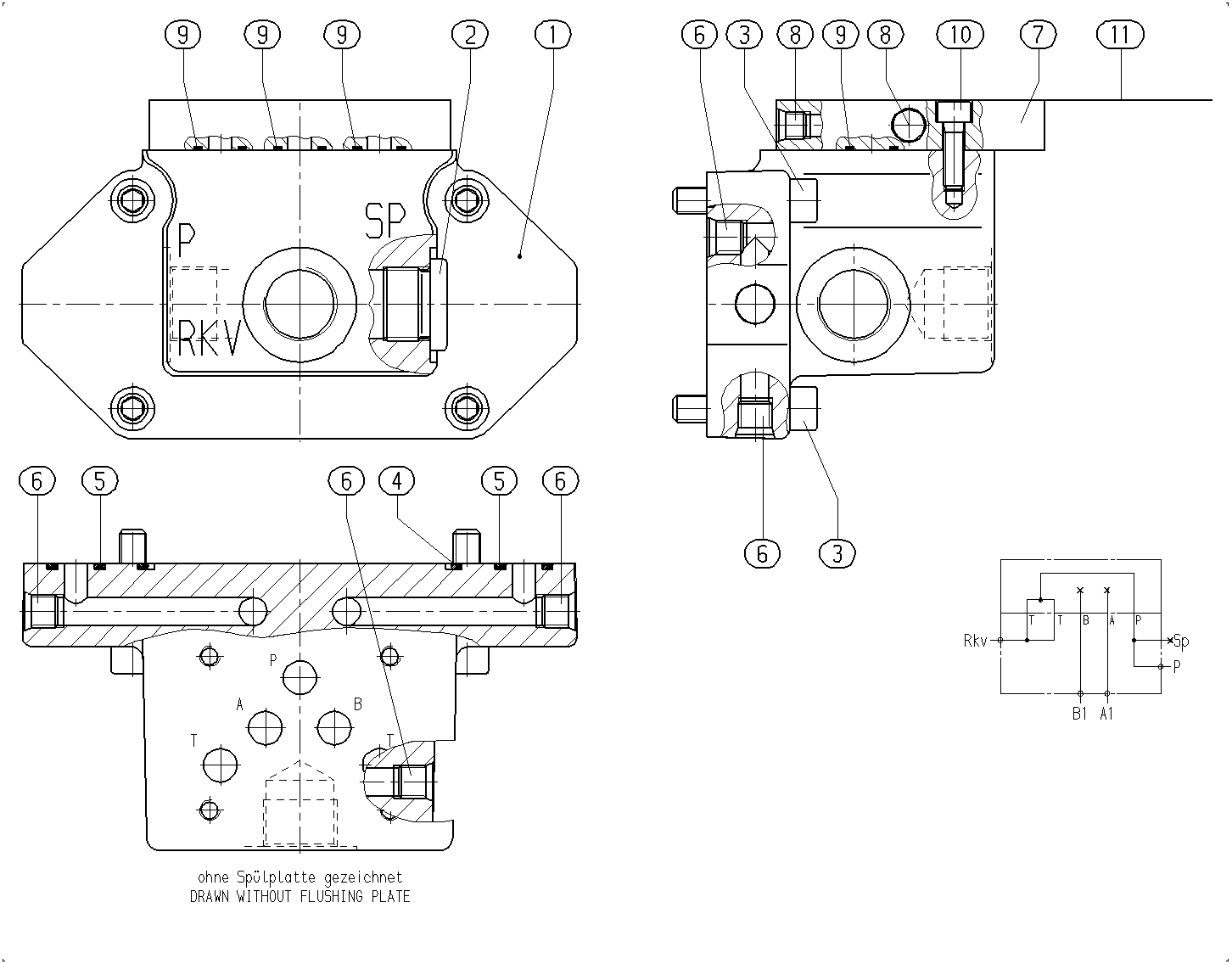

CONNECTION PLATER910984174
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910975264 | CONNECTION PLATE | 1 | ||
| R909151694 | SCREW PLUGD | 1 | ||
| R910109495 | SOCKET HEAD CAP SCREW | 4 | ||
| R902650323 | R-RING | 1 | ||
| R910523003 | O-RINGD | 2 | ||
| R909831320 | DOUBLE BREAK-OFF PLUGD | 4 | ||
| R910940655 | FLUSHING PLATE | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910942813 | R-RING | 5 | ||
| R910109304 | SOCKET HEAD CAP SCREW | 4 | ||
| R910961887 | REFERENCE PLATE | 1 |
