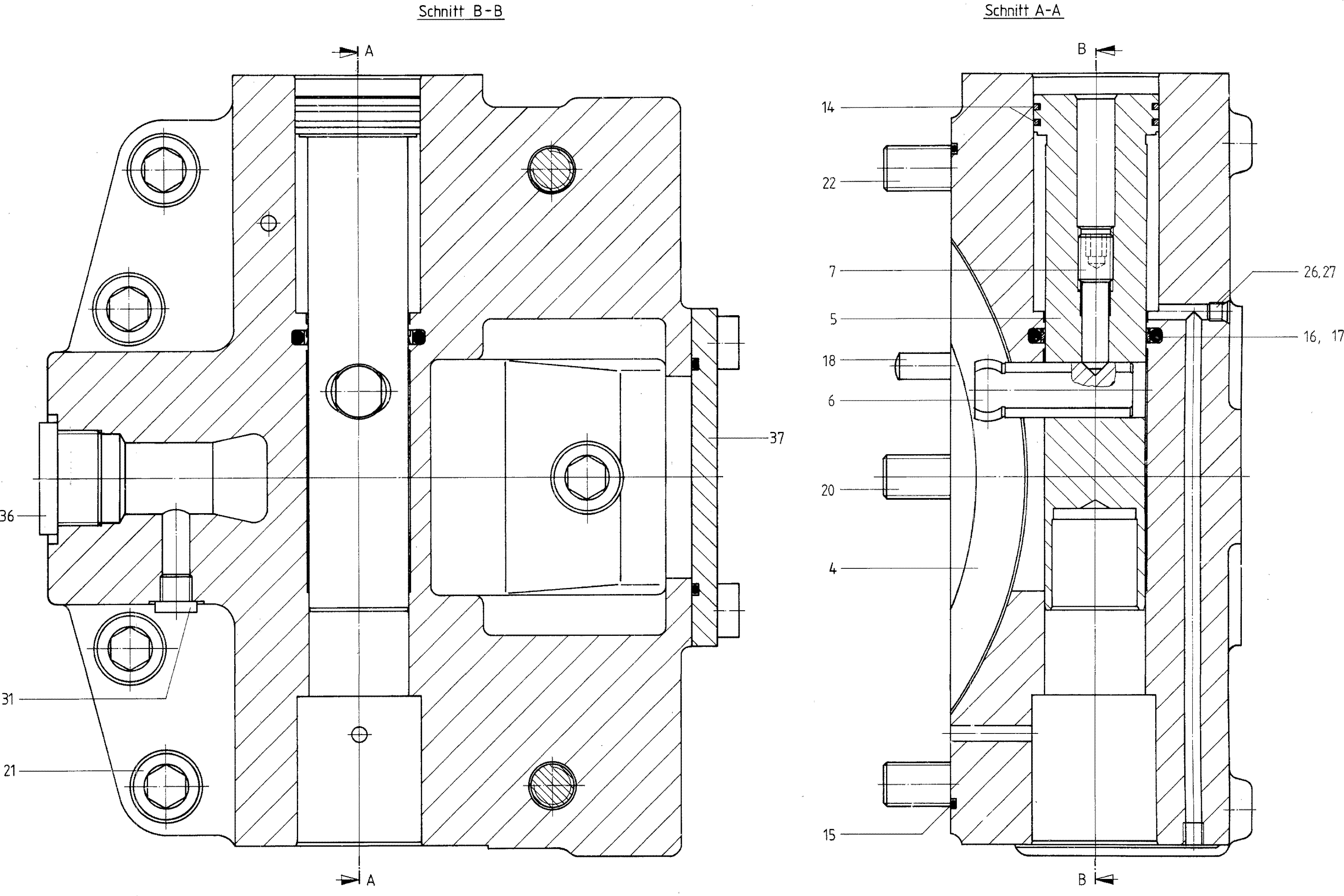

Assembly
ADJUSTING PIECER910984236
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910984237 | COVER PLATE | 1 | ||
| R902538865 | POSITIONING PISTON | 1 | ||
| R902413011 | POSITIONING STUD | 1 | ||
| R902475687 | SETSCREW | 1 | ||
| R910907604 | RECTANGULAR RING | 2 | ||
| R910801399 | O-RING | 1 | ||
| R910916878 | ROD SEAL | 1 | ||
| R910916880 | O-RING | 1 | ||
| R910517895 | STRAIGHT PIN | 2 | ||
| R910277746 | SOCKET HEAD CAP SCREW | 1 | ||
| R902572931 | SOCKET HEAD CAP SCREW | 4 | ||
| R910924900 | SOCKET HEAD CAP SCREW | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R910942229 | SCREW PLUG | 1 | ||
| R910969710 | BLANK FLANGE Assembly parts list →L | 1 |
