Assembly

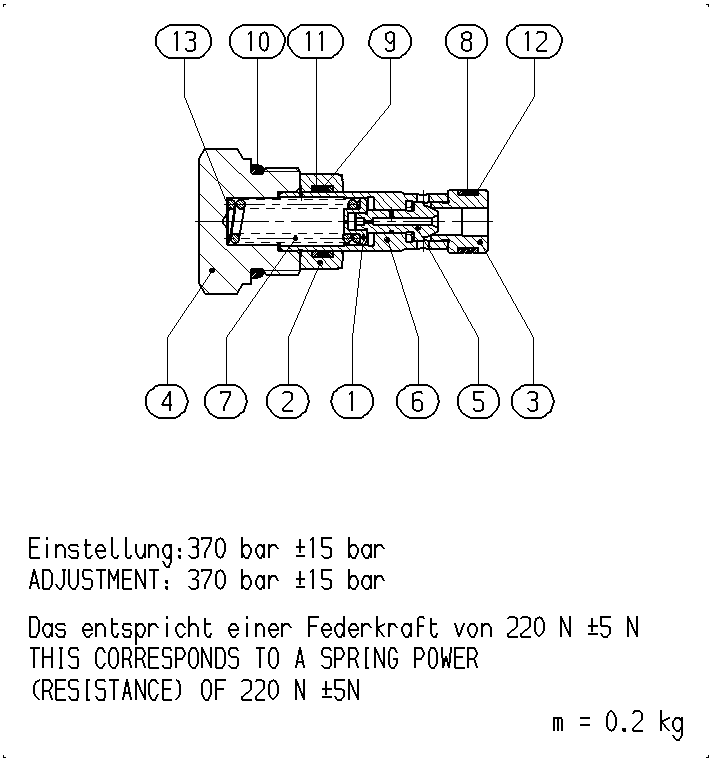

PRESSURE RELIEF VALVER910984812
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910984631 | SPRING DISK | 1 | ||
| R910984632 | GUIDE PIECE | 1 | ||
| R910984633 | VALVE SEAT | 1 | ||
| R910984634 | SCREW PLUG | 1 | ||
| R910984635 | VALVE CONE | 1 | ||
| R910984636 | VALVE SLEEVE | 1 | ||
| R910984637 | COMPRESSION SPRING | 1 | ||
| R910824798 | O-RING | 1 | ||
| R910930792 | O-RING | 1 | ||
| R910965435 | O-RING | 1 | ||
| R910984639 | BACKUP RING | 2 | ||
| R910984640 | BACKUP RING | 2 | ||
| R910754773 | SHIM RING | 2 |
