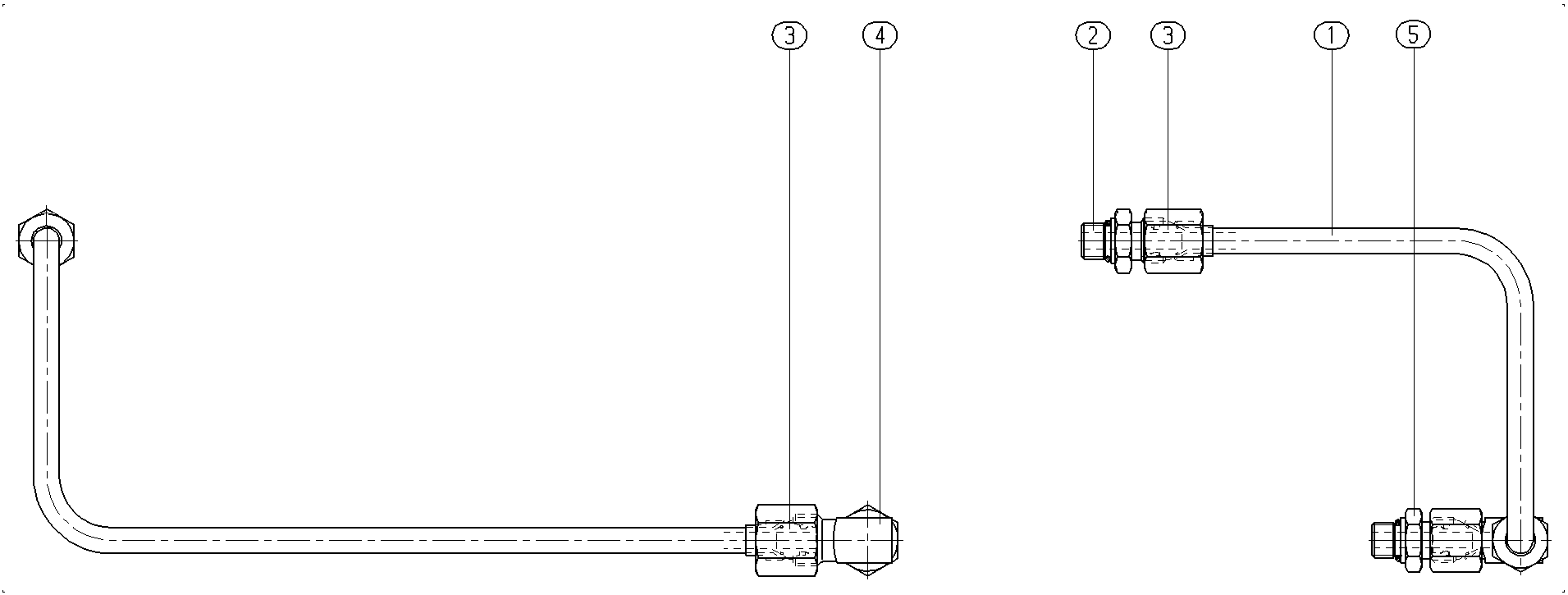

Assembly
PIPINGR910984968
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910984932 | PIPE Assembly parts list →L | 1 | ||
| R910948773 | THREADED FASTENER | 1 | ||
| R910948774 | INTERMEDIATE RING | 2 | ||
| R910761966 | THREADED FASTENER | 1 | ||
| R910960552 | MALE CONNECTOR | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910984932 | PIPE Assembly parts list →L | 1 | ||
| R910948773 | THREADED FASTENER | 1 | ||
| R910948774 | INTERMEDIATE RING | 2 | ||
| R910761966 | THREADED FASTENER | 1 | ||
| R910960552 | MALE CONNECTOR | 1 |
