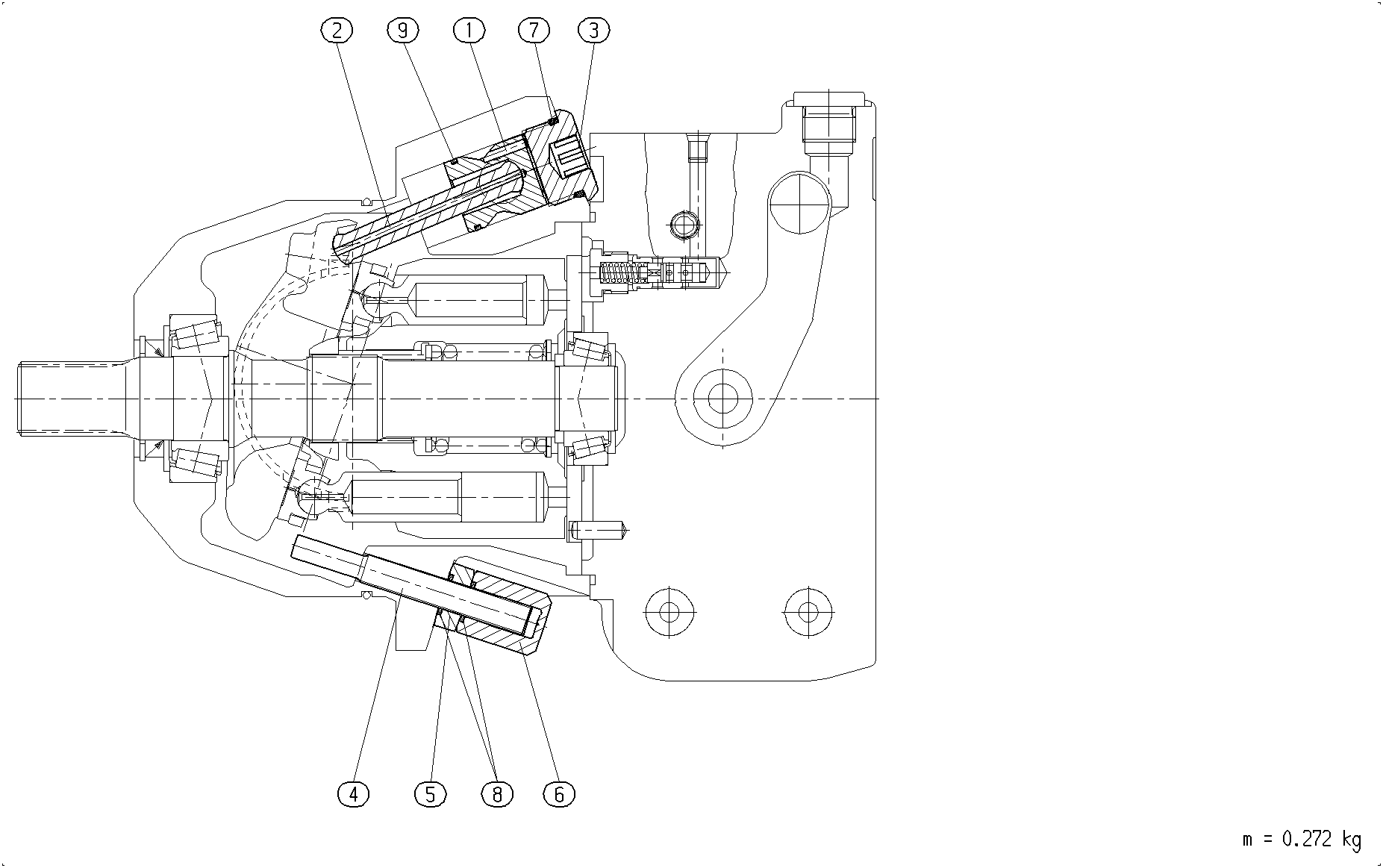

Assembly
ADJUSTING PIECER910984984
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910969289 | ADJUSTING PISTON | 1 | ||
| R902439068 | PISTON ROD | 1 | ||
| R902447575 | SCREW PLUG Assembly parts list →L | 1 | ||
| R910943993 | STOP SCREW | 1 | ||
| R910998240 | NUT | 1 | ||
| R910961839 | CAP NUT | 1 | ||
| R910965419 | O-RING | 1 | ||
| R910514691 | O-RING | 2 | ||
| R909156962 | R-RING | 1 |
