Assembly

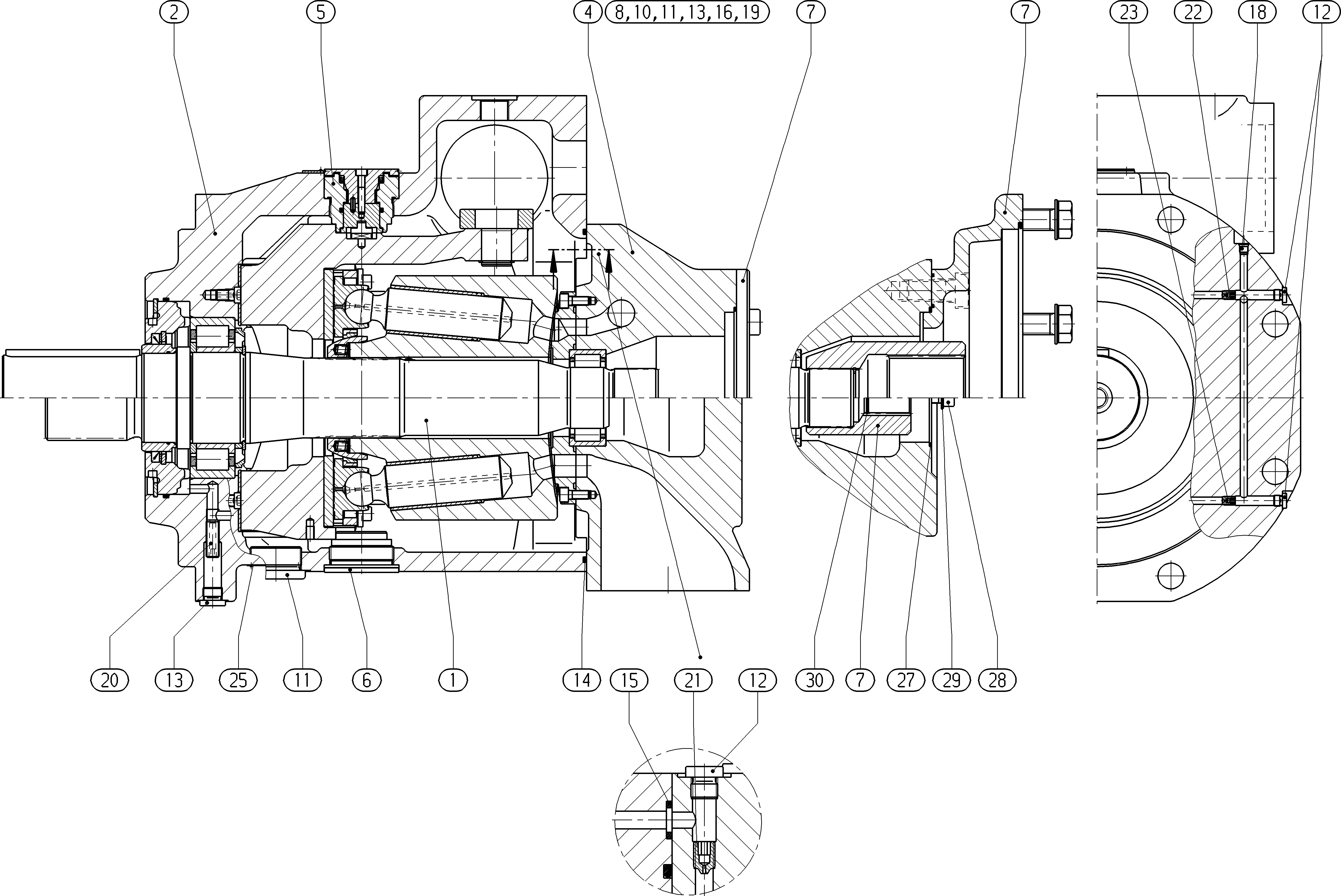

BASE UNITR910985161
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910985980 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R910975871 | PUMP HOUSING | 1 | ||
| R910985144 | CONNECTION PLATE | 1 | ||
| R902544276 | INDICATING DEVICE | 1 | ||
| R902544277 | STUD BOLT Assembly parts list →L | 1 | ||
| R910477303 | SOCKET HEAD CAP SCREW | 8 | ||
| R910941726 | SCREW PLUG | 4 | ||
| R909153364 | SCREW PLUG | 3 | ||
| R909153815 | SCREW PLUGD | 3 | ||
| R910914695 | O-RINGD | 1 | ||
| R913028081 | AXIAL SEALD | 1 | ||
| R910923831 | R-RINGD | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 2 | ||
| R910979838 | THROTTLE SCREW | 1 | ||
| R910978402 | THROTTLE SCREW | 1 | ||
| R910969260 | THROTTLE SCREW | 1 | ||
| R910978403 | THROTTLE SCREW | 1 | ||
| R910979852 | REFERENCE PLATE | 1 |
