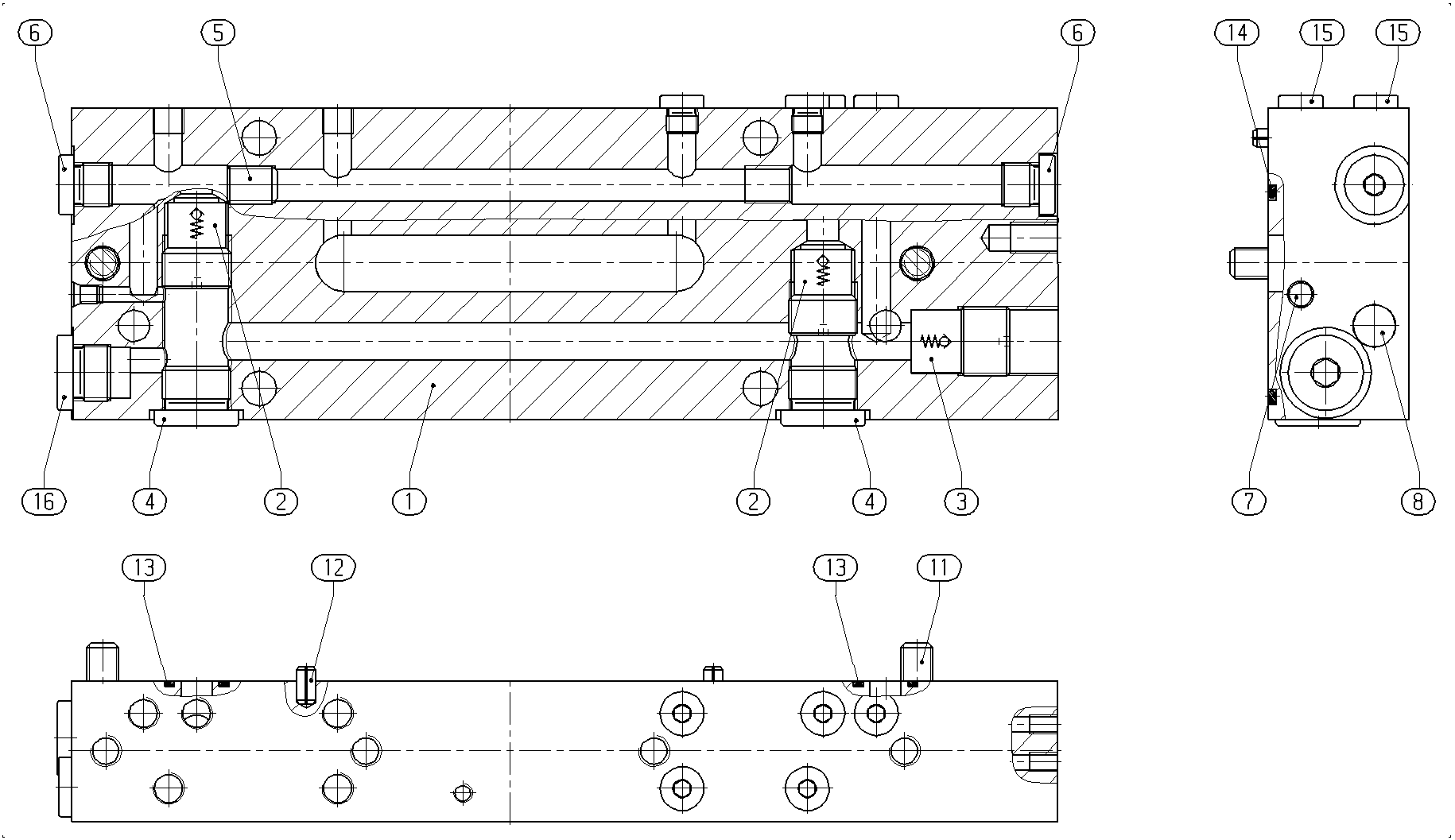

Assembly
INTERMEDIATE PLATER910986563
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910984247 | INTERMEDIATE PLATE | 1 | ||
| R902650639 | CHECK VALVE | 2 | ||
| R910979807 | CHECK VALVE | 1 | ||
| R909151694 | SCREW PLUGD | 2 | ||
| R910538884 | SETSCREW | 1 | ||
| R909151979 | SCREW PLUGD | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910938084 | DOUBLE BREAK-OFF PLUGD | 1 | ||
| R910120308 | SOCKET HEAD CAP SCREW | 2 | ||
| R900002645 | SLOTTED SPRING PIN | 2 | ||
| R910514985 | O-RINGD | 4 | ||
| R910914340 | O-RINGD | 1 | ||
| R909153364 | SCREW PLUG | 5 | ||
| R909153815 | SCREW PLUG | 1 |
