Assembly

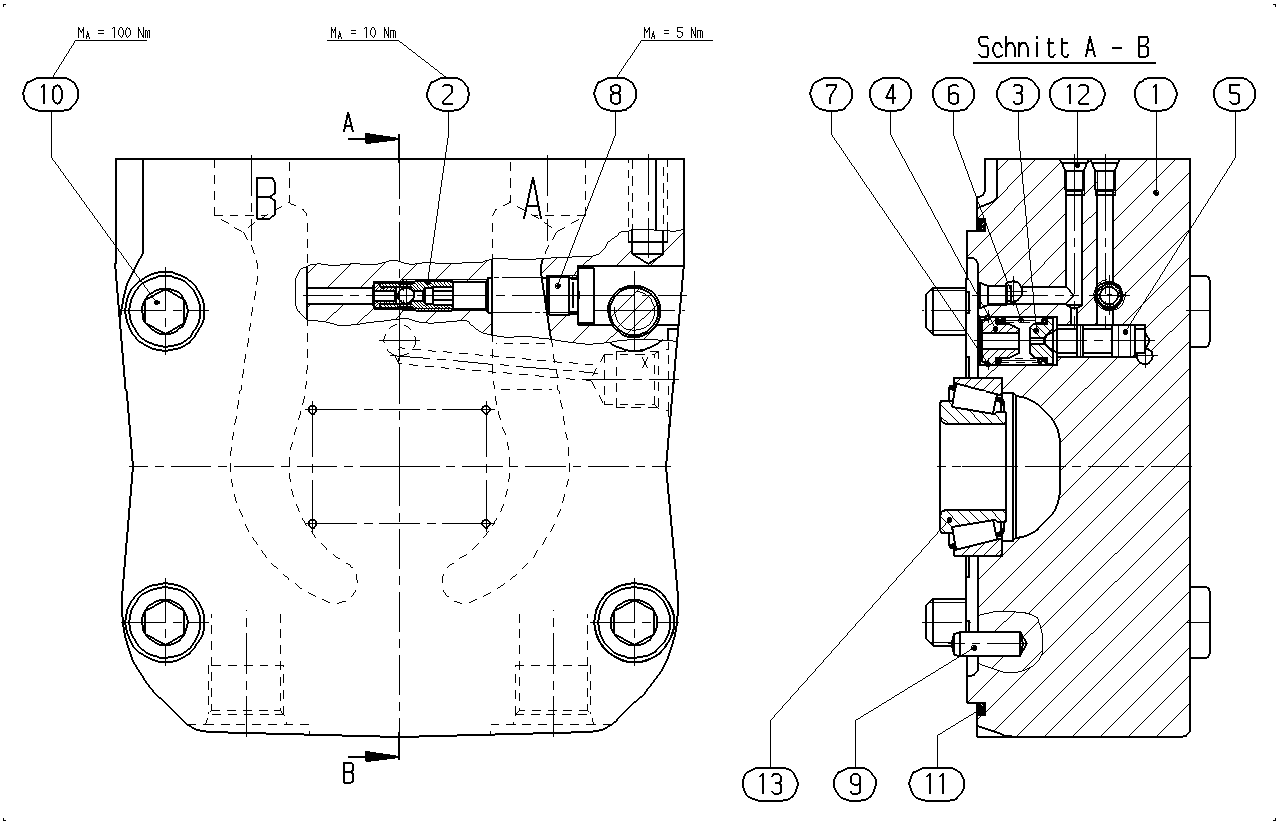

CONNECTION PLATER910987572
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910987355 | CONNECTION PLATE | 1 | ||
| R902424169 | SHUTTLE VALVE Assembly parts list →L | 1 | ||
| R909426138 | SPRING DISK | 1 | ||
| R910987354 | SPRING DISK | 1 | ||
| R909426137 | CONTROL PISTON | 1 | ||
| R909432802 | COMPRESSION SPRING | 1 | ||
| R910987573 | SNAP RING | 1 | ||
| R909153364 | SCREW PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 | ||
| R910110256 | SOCKET HEAD CAP SCREW | 4 | ||
| R913052051 | O-RING | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 |
