Assembly

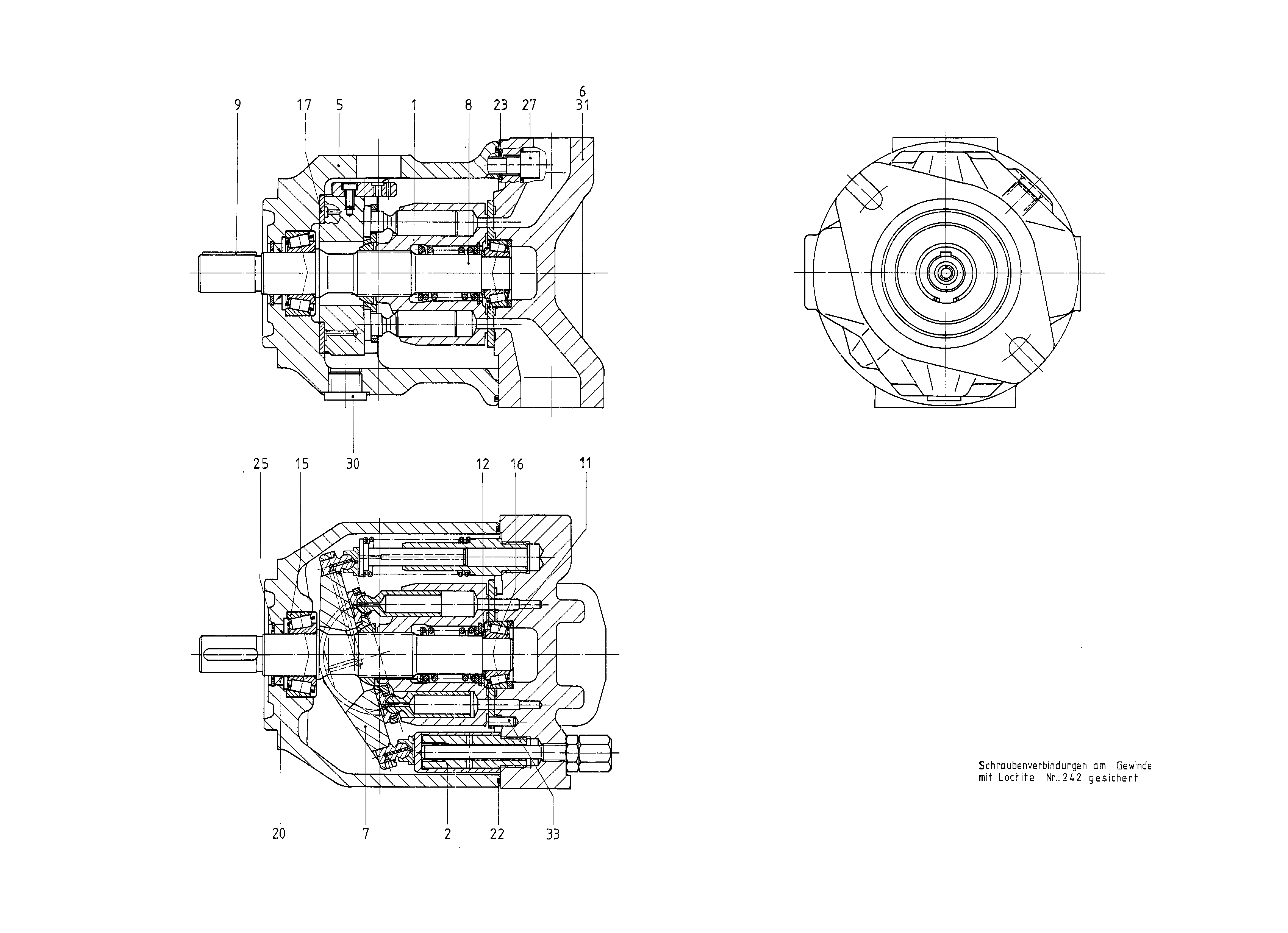

BASE UNITR910988158
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902559903 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902538142 | ADJUSTING PIECE Assembly parts list →L | 1 | ||
| R902546049 | PUMP HOUSING | 1 | ||
| 6 | R910985654 | CONNECTION PLATE | 1 | |
| R910961029 | SWASH PLATE Assembly parts list →L | 1 | ||
| R910992268 | DRIVE SHAFT | 1 | ||
| R910938955 | ADJUSTMENT SHIM | 1 | ||
| R910704946 | TAPERED-ROLLER BEARING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 | ||
| R910900198 | BEARING SHELL | 2 | ||
| R910793671 | SHAFT SEALING RINGD | 1 | ||
| R910704997 | O-RINGD | 1 | ||
| 23 | R913052114 | R-RINGD | 4 | |
| R902403814 | RETAINING RING | 1 | ||
| 27 | R910220264 | SOCKET HEAD CAP SCREW | 4 | |
| 28 | R909151692 | SCREW PLUGD | 1 | |
| R909151694 | SCREW PLUGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R902533908 | STRAIGHT PIN | 1 |
