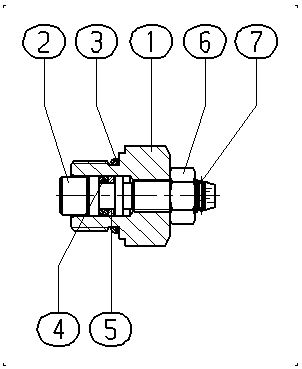

Assembly
STROKE LIMITERR910989877
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910960534 | SCREW PLUG | 1 | ||
| R910989861 | STUD BOLT | 1 | ||
| R910525618 | O-RING | 1 | ||
| R910080519 | O-RING | 1 | ||
| R910946269 | BACKUP RING | 1 | ||
| R910934194 | HEXAGON NUT | 1 | ||
| R909153280 | SNAP RING | 1 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910960534 | SCREW PLUG | 1 | ||
| R910989861 | STUD BOLT | 1 | ||
| R910525618 | O-RING | 1 | ||
| R910080519 | O-RING | 1 | ||
| R910946269 | BACKUP RING | 1 | ||
| R910934194 | HEXAGON NUT | 1 | ||
| R909153280 | SNAP RING | 1 |
