Assembly

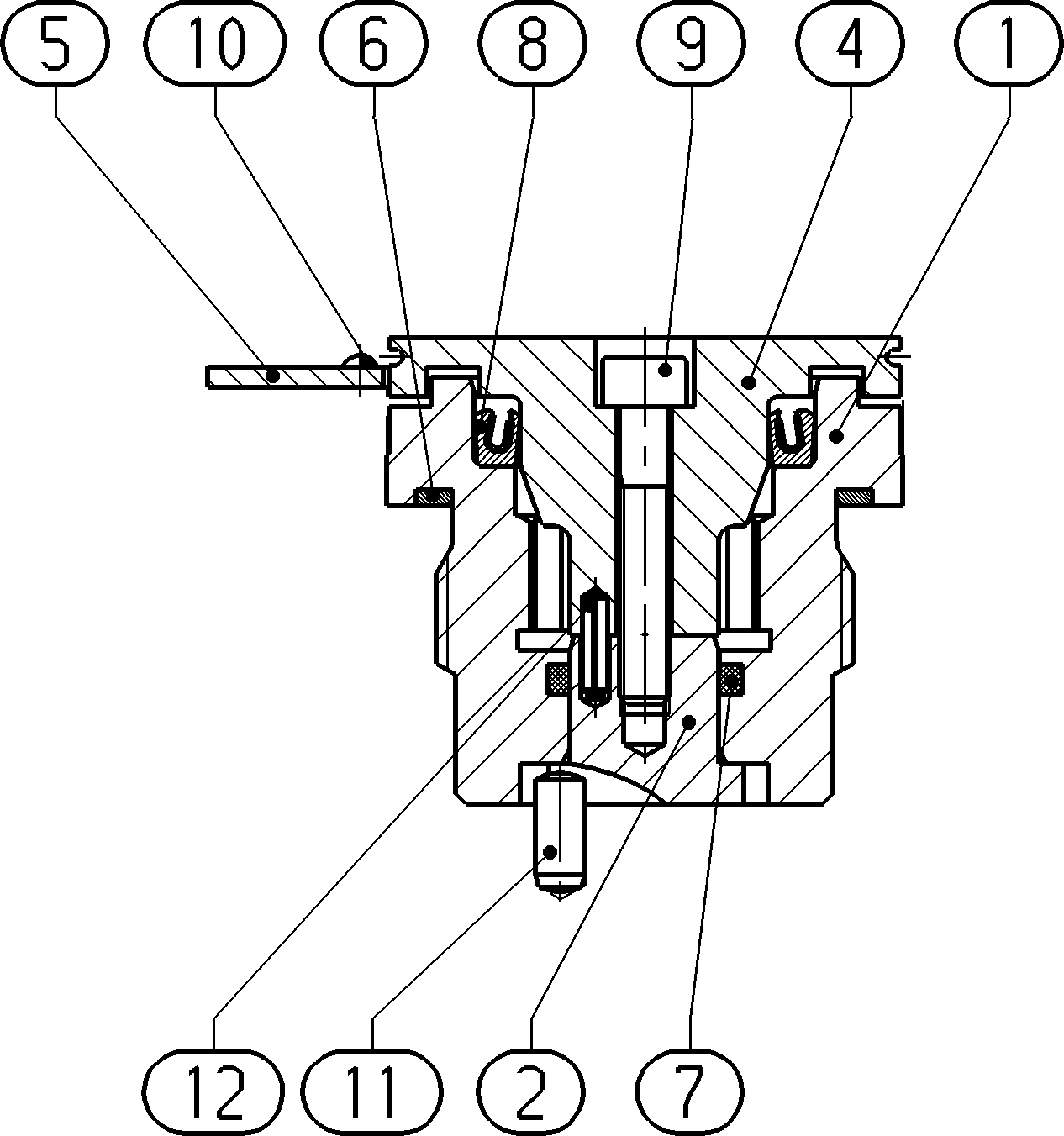

INDICATING DEVICER910989936
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902538380 | STUD BOLT | 1 | ||
| R910970504 | DRIVER PIVOT | 1 | ||
| R910970635 | POINTER | 1 | ||
| R910908854 | DIAL | 1 | ||
| R910415286 | SEAL RINGD | 1 | ||
| R910963003 | QUAD RINGD | 1 | ||
| R910970636 | SEAL RING | 1 | ||
| R902565487 | SOCKET HEAD CAP SCREW | 1 | ||
| R910911771 | STRAIGHT PIN | 1 | ||
| R910125776 | SLOTTED SPRING PIN | 1 |
