Assembly

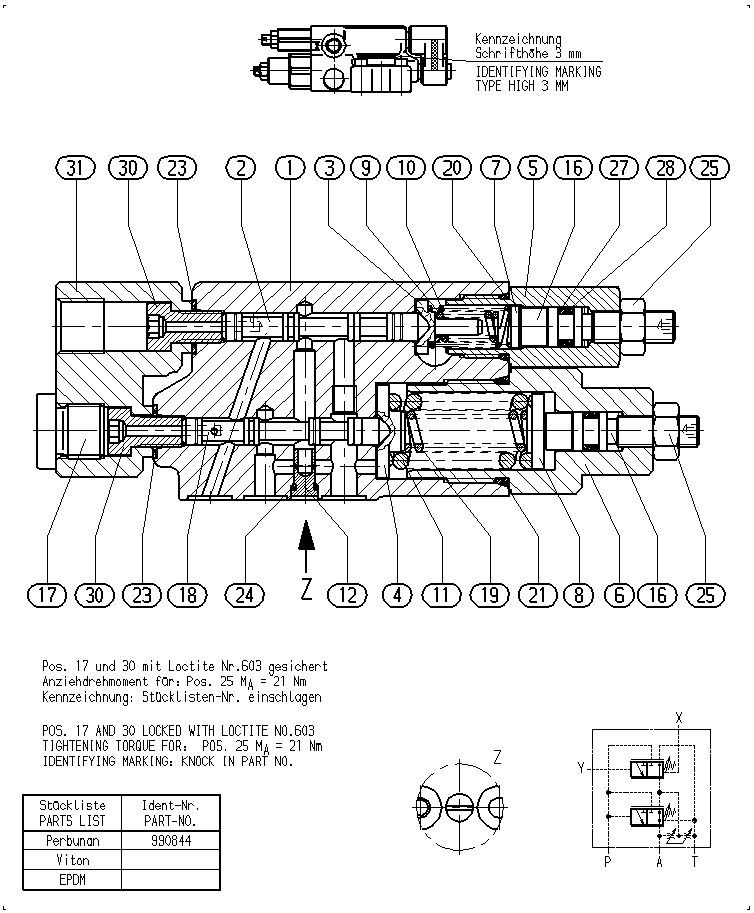

CONTROL VALVER910990844
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910961378 | VALVE HOUSING | 1 | ||
| R910900495 | VALVE SPOOL | 1 | ||
| R910929875 | SPRING DISK | 1 | ||
| R910707023 | SPRING DISK | 1 | ||
| R910946202 | SCREW PLUG | 1 | ||
| R910946203 | SCREW PLUG | 1 | ||
| R910900362 | WASHER | 1 | ||
| R910900389 | WASHER | 1 | ||
| R910924695 | COMPRESSION SPRING | 1 | ||
| R910924709 | COMPRESSION SPRING | 1 | ||
| R910707031 | COMPRESSION SPRING | 1 | ||
| R910930560 | ORIFICE | 1 | ||
| R910946201 | STUD BOLT | 2 | ||
| R909151979 | SCREW PLUG | 1 | ||
| R910900311 | VALVE SPOOL | 1 | ||
| R910911509 | COMPRESSION SPRING | 1 | ||
| R910515124 | O-RINGD | 1 | ||
| R910574953 | O-RINGD | 1 | ||
| R910114774 | BONDED SEAL RINGD | 2 | ||
| R910977084 | O-RING | 1 | ||
| R910934194 | HEXAGON NUT | 2 | ||
| R910101982 | O-RING | 2 | ||
| R910946269 | BACKUP RING | 2 | ||
| R910965426 | HOLLOW BOLT | 2 | ||
| R910972820 | DOUBLE ADAPTER | 1 |
