Assembly

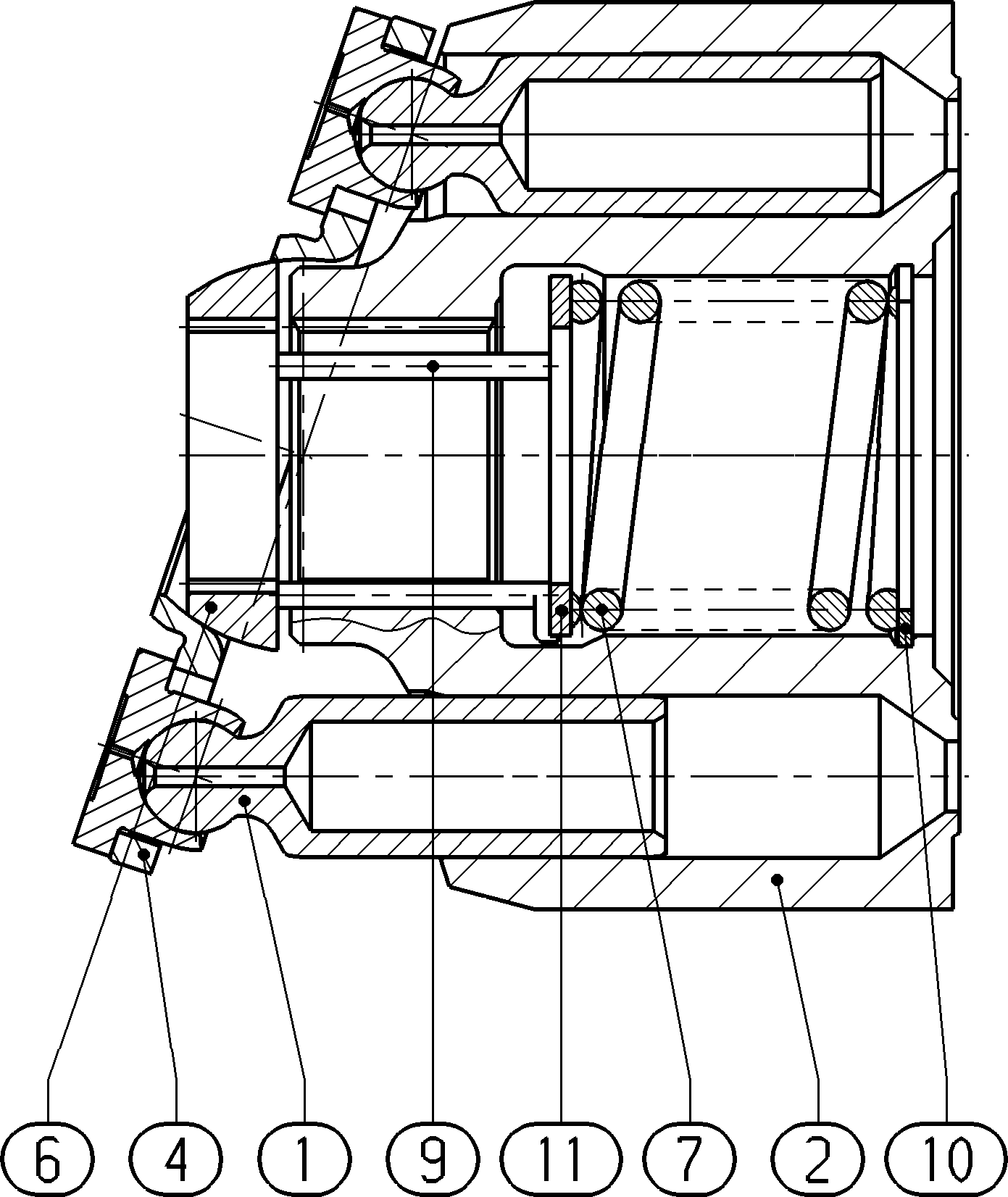

ROTARY GROUPR910993591
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902418043 | PISTON PAD | 9 | |
| R902427816 | CYLINDER | 1 | ||
| R902503255 | RETAINING PLATE | 1 | ||
| R910979801 | RETAINING BALL | 1 | ||
| R910975251 | COMPRESSION SPRING | 1 | ||
| 9 | R902400741 | PRESSURE PIN | 3 | |
| R909156218 | RETAINING RING | 1 | ||
| 11 | R902400742 | SUPPORTING DISC | 1 |
