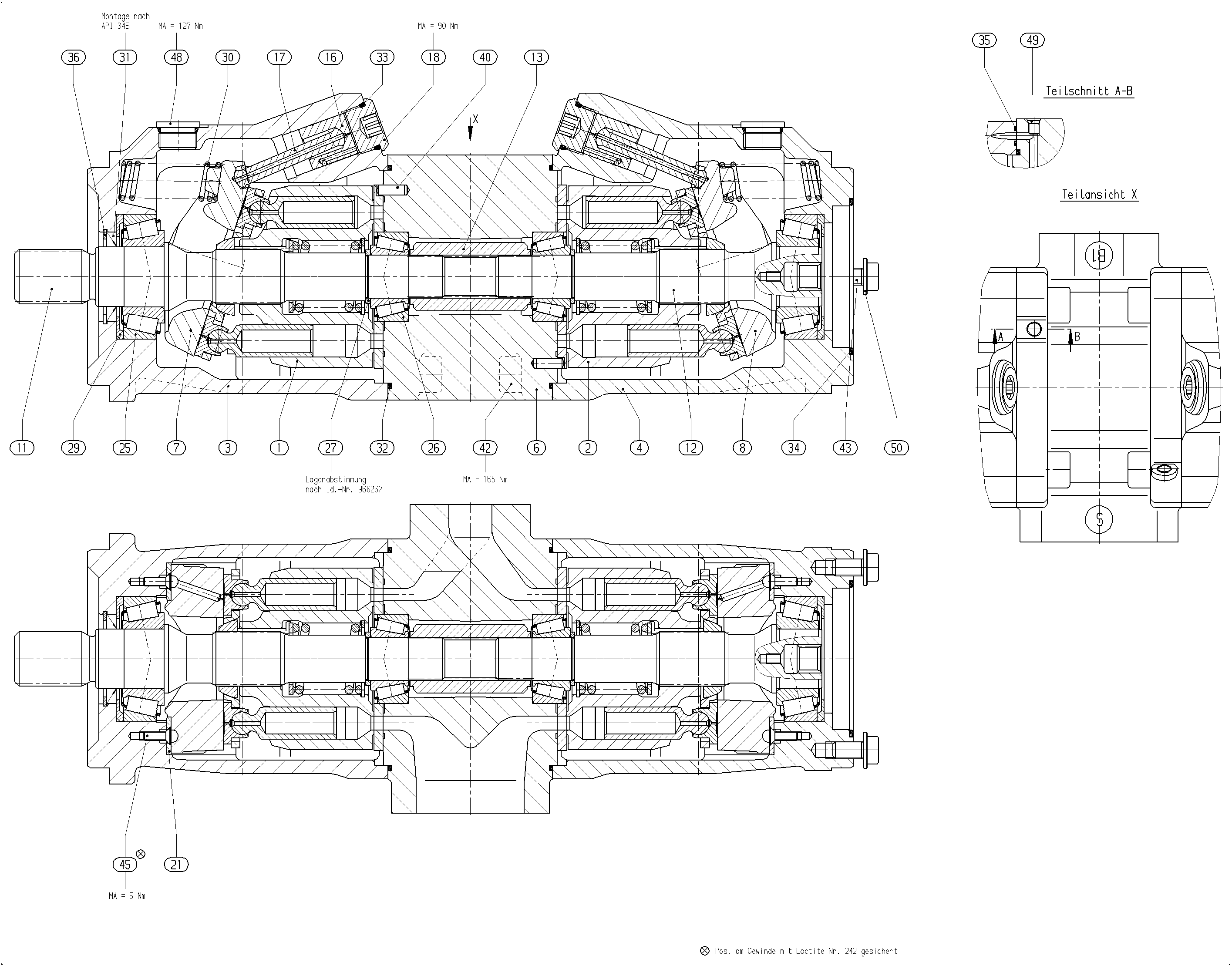

Assembly
BASE UNITR910996142
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902454130 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902454129 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902420884 | PUMP HOUSING | 1 | ||
| R902420885 | PUMP HOUSING | 1 | ||
| R902546033 | CONNECTION PLATE | 1 | ||
| R902437115 | SWASH PLATE | 1 | ||
| R902437116 | SWASH PLATE | 1 | ||
| R910994407 | DRIVE SHAFT | 1 | ||
| R902413428 | DRIVE SHAFT | 1 | ||
| R910979644 | SPLINED COUPLING | 1 | ||
| R902438263 | ADJUSTING PISTON | 2 | ||
| R902439068 | PISTON ROD | 2 | ||
| R902447575 | SCREW PLUGD | 2 | ||
| R902413637 | BEARING SHELLD | 2 | ||
| 22 | R902413636 | BEARING SHELL | 2 | |
| R910720224 | TAPERED-ROLLER BEARING | 2 | ||
| R910973501 | TAPERED-ROLLER BEARING | 2 | ||
| R910966528 | ADJUSTMENT SHIM | 2 | ||
| R910989235 | STOP RING | 2 | ||
| R910973548 | COMPRESSION SPRING | 2 | ||
| R909831661 | SHAFT SEALING RING | 1 | ||
| — | O-RING | 2 | ||
| R910357049 | O-RING | 1 | ||
| R910942133 | R-RING | 4 | ||
| R910941918 | RETAINING RING | 1 | ||
| R902533908 | STRAIGHT PIN | 2 | ||
| R910402303 | SOCKET HEAD CAP SCREW | 8 | ||
| R910977023 | SOCKET HEAD CAP SCREW | 2 | ||
| R910993660 | COUNTERSUNK-HEAD SCREW | 4 | ||
| R910967343 | SCREW PLUG | 3 | ||
| — | DOUBLE BREAK-OFF PLUG | 3 | ||
| R910186724 | WASHER | 2 |
