Assembly

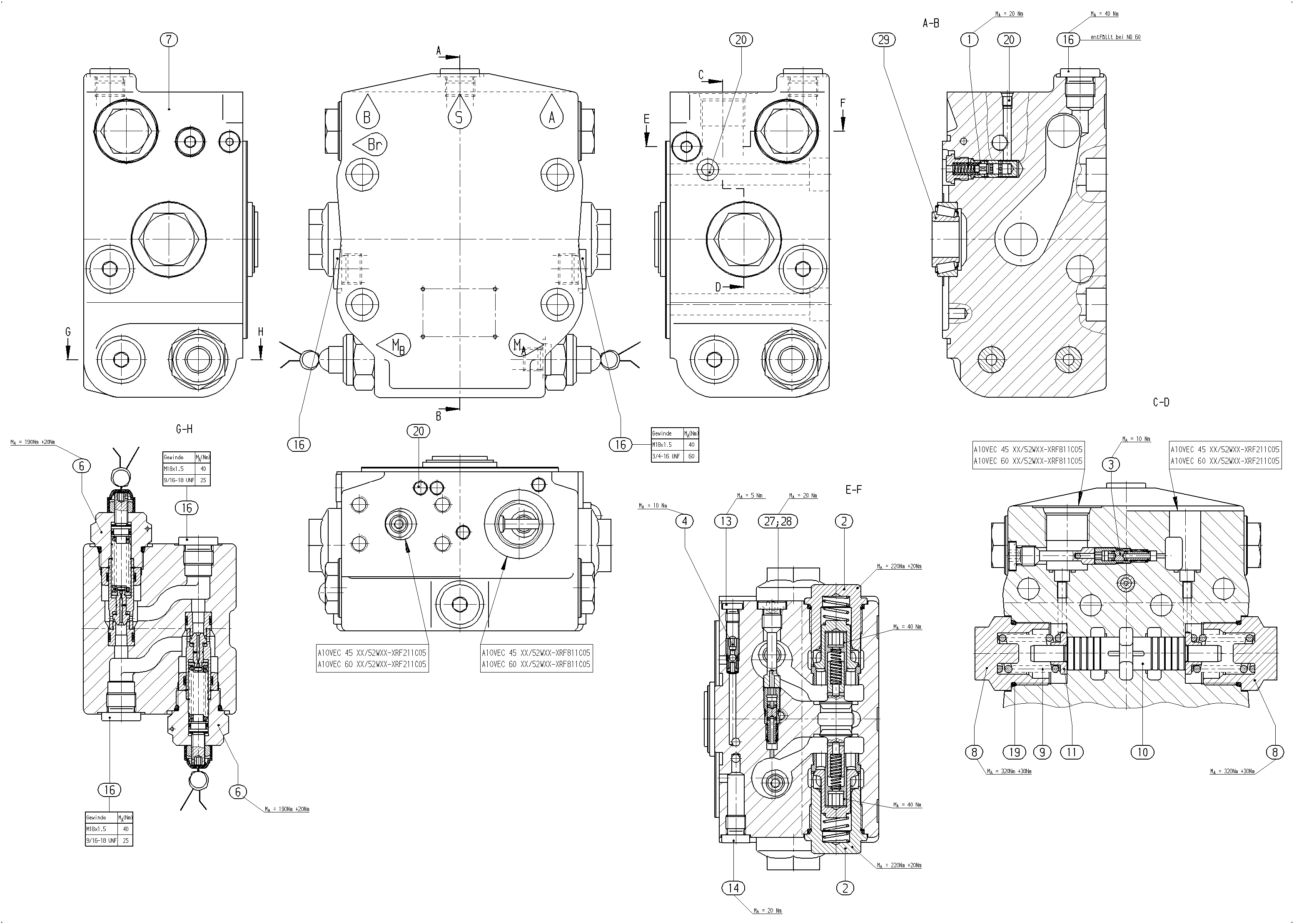

CONNECTION PLATER910997739
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400712 | BRAKE RELEASE VALVE Assembly parts list →L | 1 | ||
| R902038539 | CHECK VALVE | 2 | ||
| R902407296 | VALVE | 1 | ||
| R902423170 | SHUTTLE VALVE | 1 | ||
| R910999736 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R910978746 | CONNECTION PLATE | 1 | ||
| R902404150 | SCREW PLUG | 2 | ||
| R910976270 | COMPRESSION SPRING | 2 | ||
| R902427511 | PISTON | 1 | ||
| R902025910 | SPRING DISK | 2 | ||
| R902650656 | SCREW PLUG | 1 | ||
| R902650659 | SCREW PLUG | 1 | ||
| 15 | R909156651 | SCREW PLUG | 2 | |
| R909156651 | SCREW PLUG | 3 | ||
| R909831230 | O-RING | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R902431751 | SCREW PLUG | 1 | ||
| R902601634 | SEAL RING | 1 | ||
| R910704954 | TAPERED-ROLLER BEARING | 1 |
