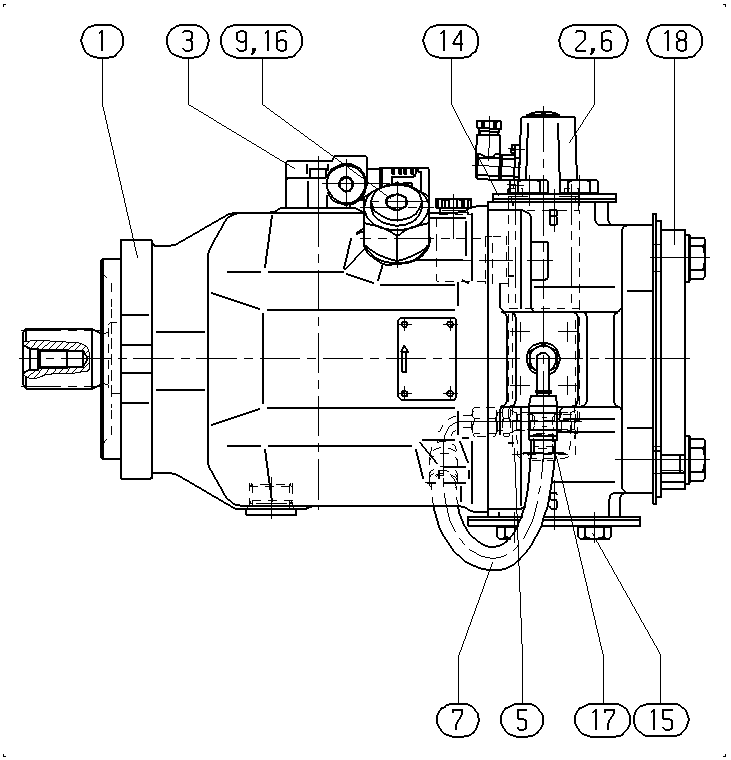

Assembly
AXIAL-PISTON PUMPR910998627
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910998571 | BASE UNIT Assembly parts list →L | 1 | ||
| R902424554 | PROPORTIONAL DIRECTIONAL VALVE Assembly parts list →L | 1 | ||
| R910947340 | INDUCTIVE POS.TRANSDUCER Assembly parts list →L | 1 | ||
| R902409295 | INTERMEDIATE PLATE Assembly parts list →L | 1 | ||
| R910977098 | SOCKET HEAD CAP SCREW | 4 | ||
| R910969150 | HOSE ASSEMBLY Assembly parts list →L | 1 | ||
| R910913483 | ADAPTER Assembly parts list →L | 1 | ||
| R902400584 | FLANGE COVER | 1 | ||
| R902400594 | FLANGE COVER | 1 | ||
| R902602012 | SEAL SCREW | 1 | ||
| R909831377 | GUARD PLUG | 1 | ||
| R902602977 | FLANGE COVER | 1 |
