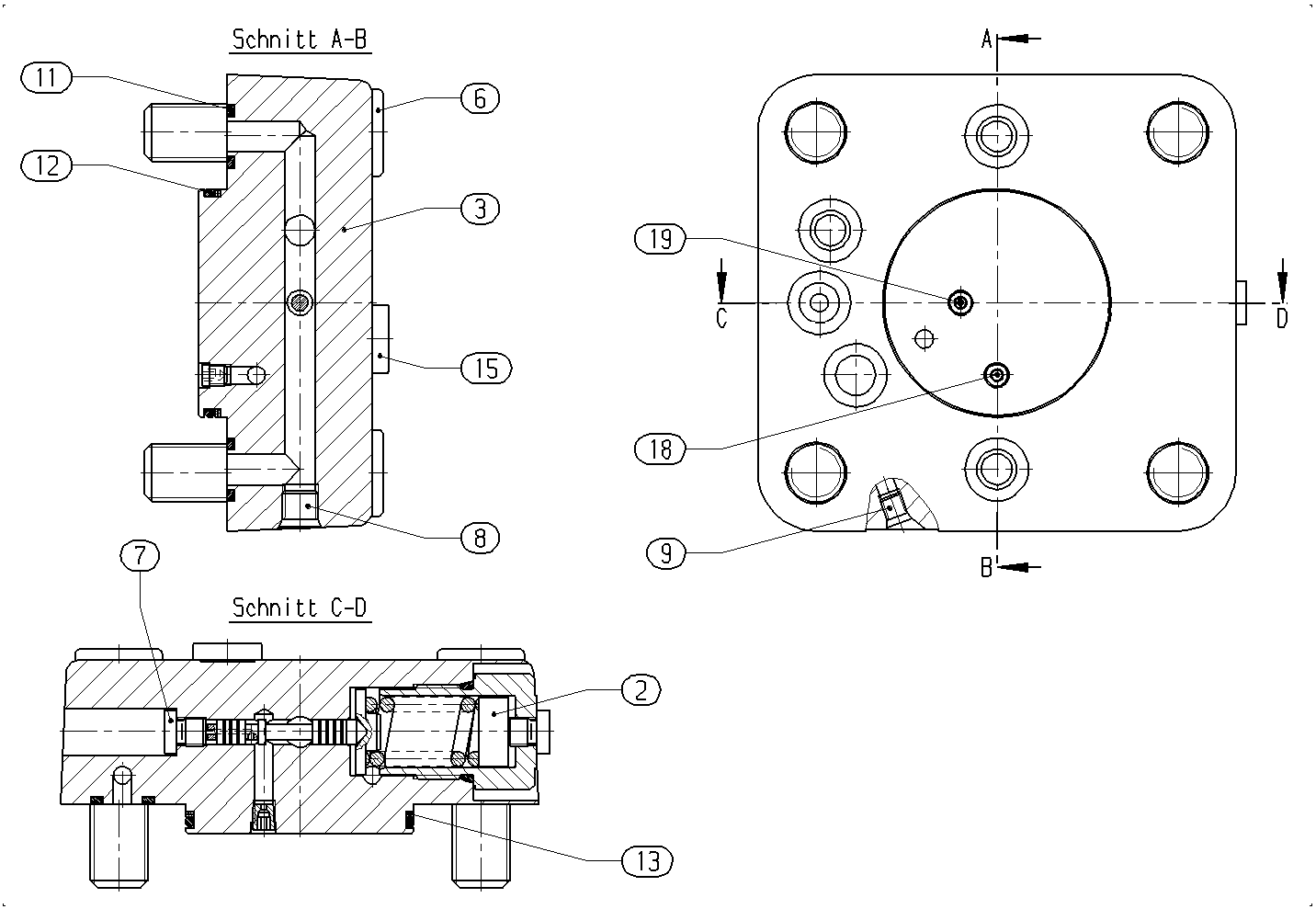

Assembly
COVERR910998840
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910988553 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R910998032 | COVER | 1 | ||
| R910126411 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156863 | SCREW PLUGD | 1 | ||
| R909831320 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R910518336 | O-RINGD | 5 | ||
| R910930814 | O-RING | 1 | ||
| R910927882 | BACKUP RINGD | 1 | ||
| R909153930 | SCREW PLUG | 1 | ||
| R910436941 | NOZZLE | 1 | ||
| R910836303 | NOZZLE | 1 |
