Assembly

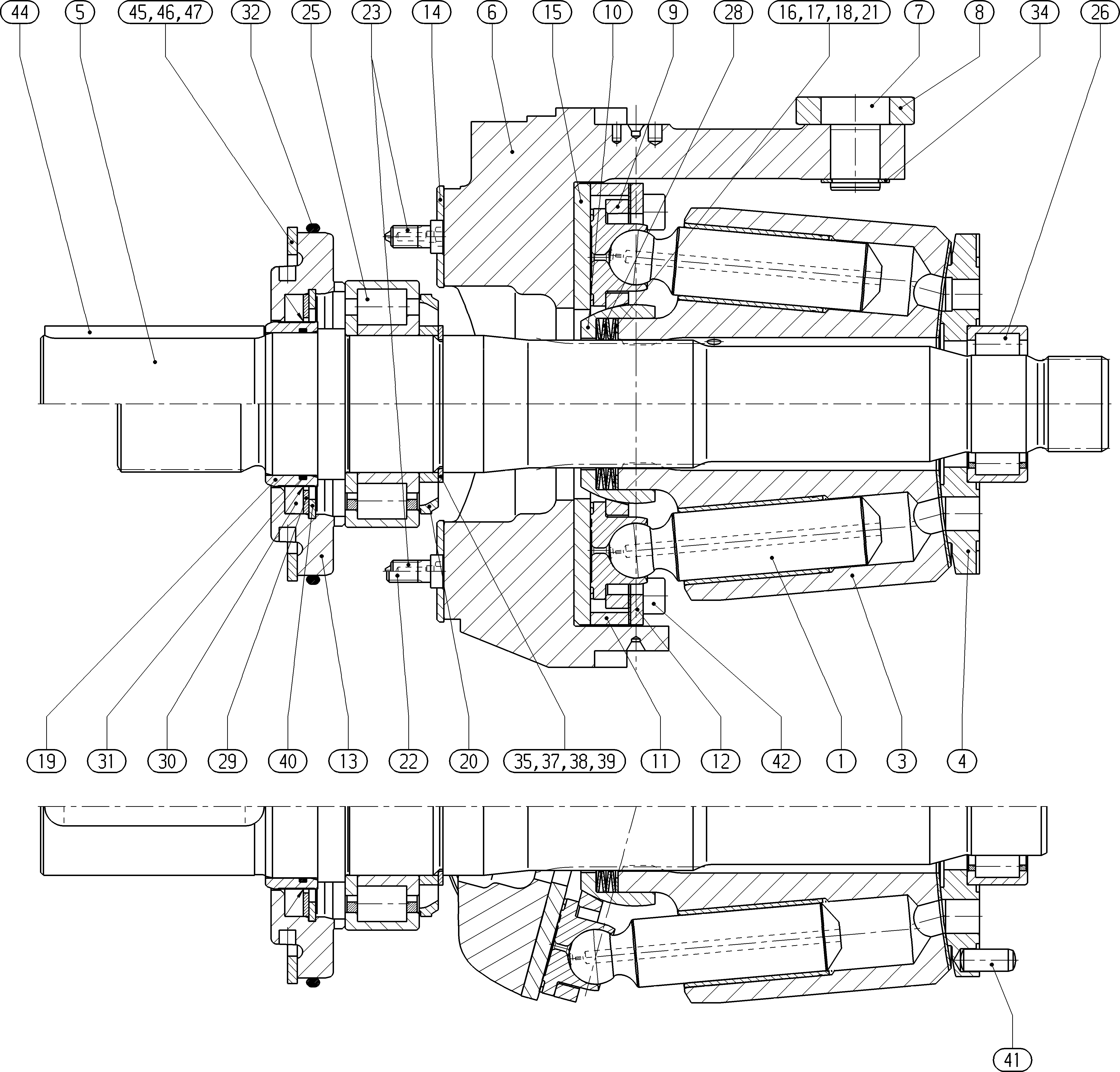

ROTARY GROUPR910998926
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902400860 | PISTON PAD | 9 | ||
| R902463686 | CYLINDER | 1 | ||
| R910936313 | DISTRIBUTOR PLATE | 1 | ||
| R910996952 | DRIVE SHAFT | 1 | ||
| R910796433 | SWASH PLATE | 1 | ||
| R910797332 | DRIVER PIVOT | 1 | ||
| R910923656 | SLIDER | 1 | ||
| R902534515 | RETAINING PLATE | 1 | ||
| R910803064 | RETAINING BALL | 1 | ||
| R910797367 | SPACER SEGMENT | 2 | ||
| R910797375 | SEGMENT | 2 | ||
| R910993486 | SEALING FLANGE | 1 | ||
| R910946522 | BEARING SHELL | 2 | ||
| R910903603 | SLIDING DISC | 1 | ||
| R910846473 | SHIM RING | 1 | ||
| R910846465 | SHIM RING | 1 | ||
| R909078321 | SHIM RING | 1 | ||
| R910991526 | SEAL BUSHING | 1 | ||
| R910993496 | FEED WHEEL | 1 | ||
| R909078319 | SHIM RING | 1 | ||
| R910932882 | SETTING SCREW | 2 | ||
| R910978477 | CYL. ROLLER BEARING | 1 | ||
| R910978478 | CYL. ROLLER BEARING | 1 | ||
| R909074128 | CUP-SPRING STACK | 1 | ||
| R902400750 | SHIM RING | 1 | ||
| R910963544 | SHAFT SEALING RINGD | 1 | ||
| R902400765 | O-RING | 1 | ||
| R902400818 | O-RINGD | 1 | ||
| R910126691 | RETAINING RING | 1 | ||
| R910114677 | RETAINING RING | 1 | ||
| R910991731 | RETAINING RING | 1 | ||
| R910991733 | RETAINING RING | 1 | ||
| R910991734 | RETAINING RING | 1 | ||
| R910116025 | RETAINING RING | 1 | ||
| R913000822 | STRAIGHT PIN | 1 | ||
| R902650865 | SOCKET HEAD CAP SCREW | 4 | ||
| R910244848 | PARALLEL KEY | 1 | ||
| R910991665 | RETAINING RING | 1 | ||
| R910991666 | RETAINING RING | 1 | ||
| R910991667 | RETAINING RING | 1 |
