Assembly

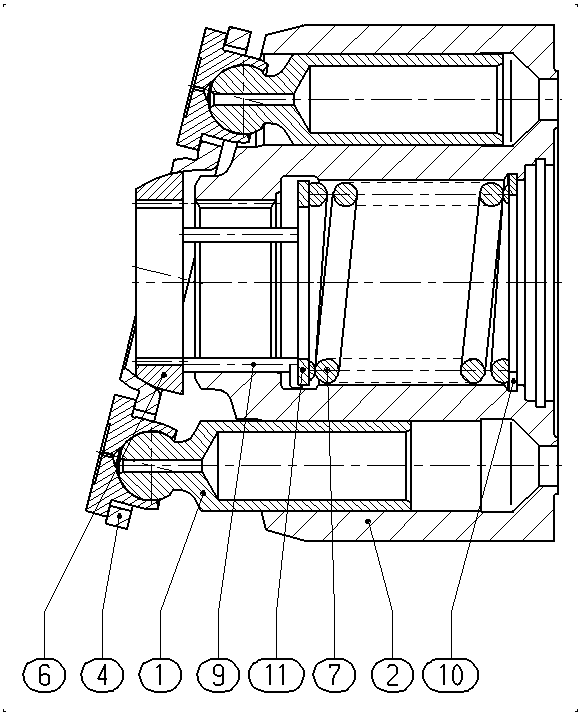

ROTARY GROUPR910998965
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902418003 | PISTON PAD | 9 | ||
| R910997314 | CYLINDER | 1 | ||
| R902443856 | RETAINING PLATE | 1 | ||
| R902443450 | RETAINING BALL | 1 | ||
| R910998916 | COMPRESSION SPRING | 1 | ||
| R910996051 | PRESSURE PIN | 3 | ||
| R910791555 | V-RING | 1 | ||
| R910906880 | SUPPORTING DISC | 1 |
