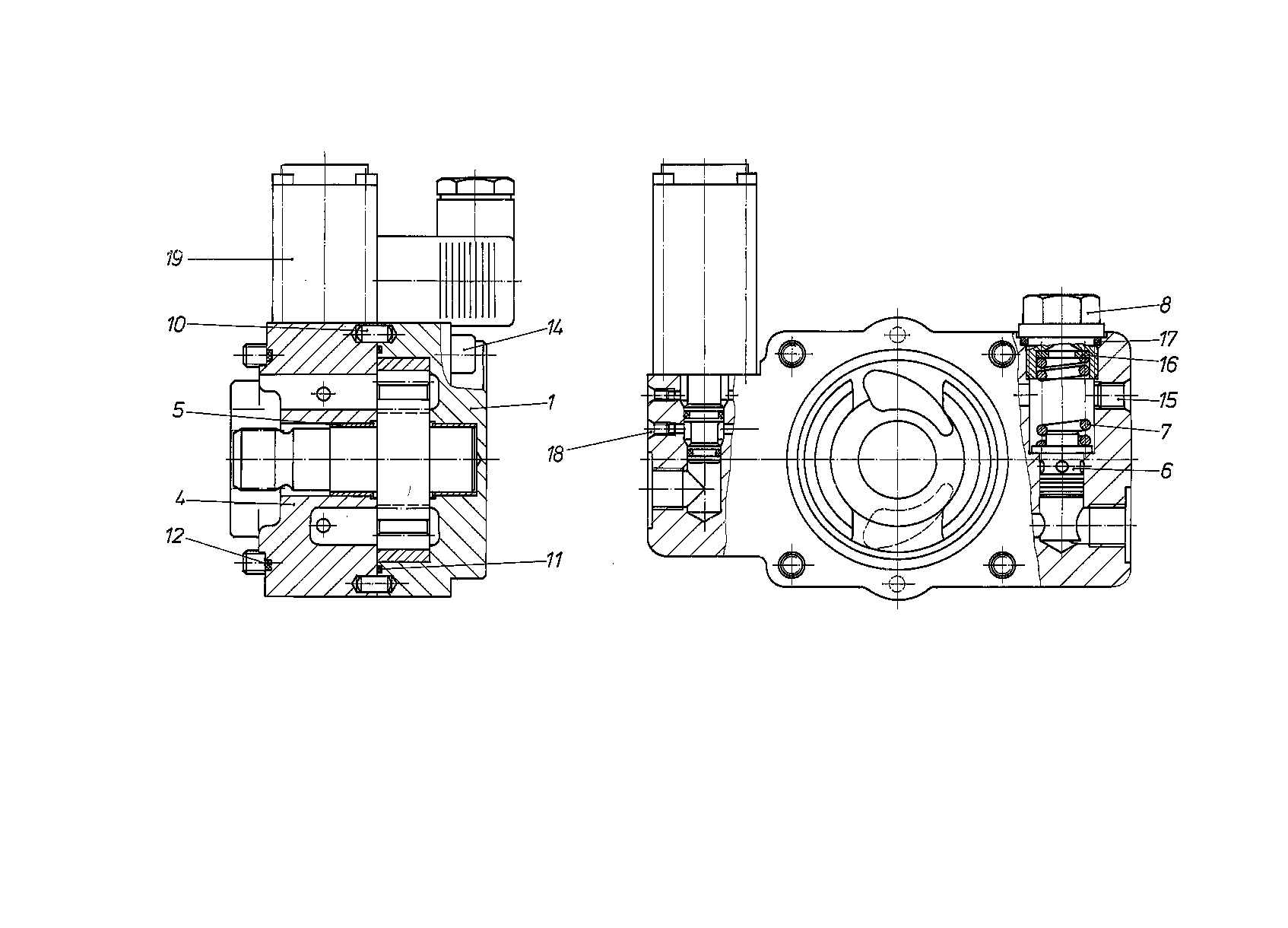

Assembly
INTERNAL GEAR PUMP
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909438520 | PUMP COVER Assembly parts list →L | 1 | |
| 4 | R909439497 | INTERMEDIATE PLATE | 1 | |
| 5 | R909069490 | BUSHING | 1 | |
| 6 | R909426804 | VALVE SPOOL | 1 | |
| R902030583 | COMPRESSION SPRING | 1 | ||
| 8 | R909409509 | SCREW PLUG | 1 | |
| 10 | R909084162 | STRAIGHT PIN | 2 | |
| 11 | R909083748 | O-RINGD | 1 | |
| 12 | R909083788 | O-RINGD | 1 | |
| 14 | R909083051 | SOCKET HEAD CAP SCREW | 4 | |
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909080511 | WASHER | 1 | ||
| 17 | R909083760 | O-RINGD | 1 | |
| — | DOUBLE BREAK-OFF PLUG | 2 | ||
| 19 | — | PRESSURE REGULATOR | 1 |
