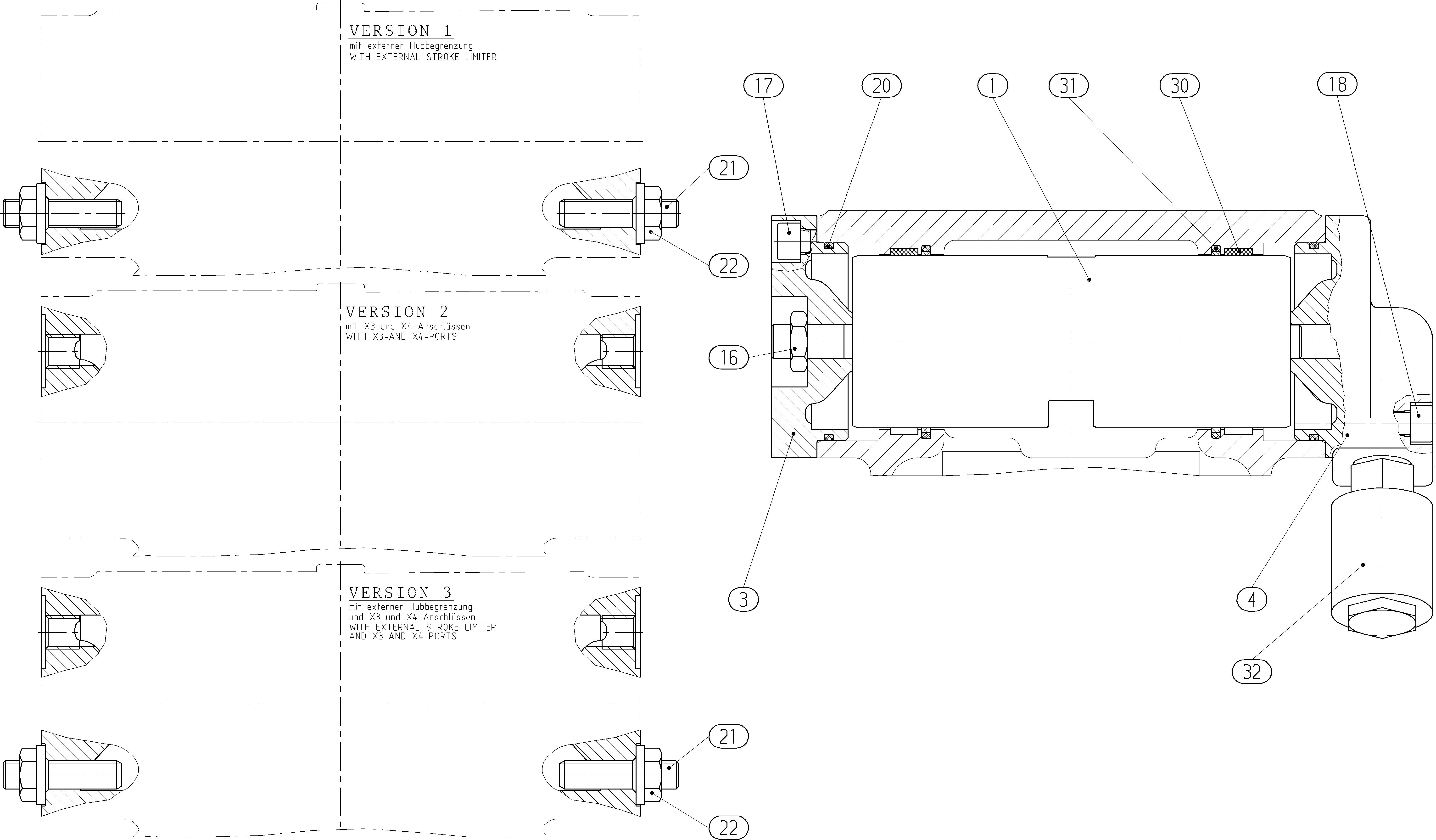

Assembly
CONTROL
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902020480 | POSITIONING PISTON Assembly parts list →L | 1 | ||
| — | COVER | 1 | ||
| — | COVER | 1 | ||
| R909154918 | HEXAGON NUT | 1 | ||
| R909083034 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083042 | SOCKET HEAD CAP SCREW | 1 | ||
| R909083785 | O-RINGD | 2 | ||
| R902213288 | SETSCREW | 2 | ||
| R909152426 | SEALING NUT | 2 | ||
| R902600750 | ROD GUIDANCE RING | 2 | ||
| R902600194 | ROD SEAL | 2 | ||
| R902601843 | SLIDE GATE VALVE Assembly parts list →L | 1 | ||
| 98 | R902002371 | SEAL KIT | 1 |
