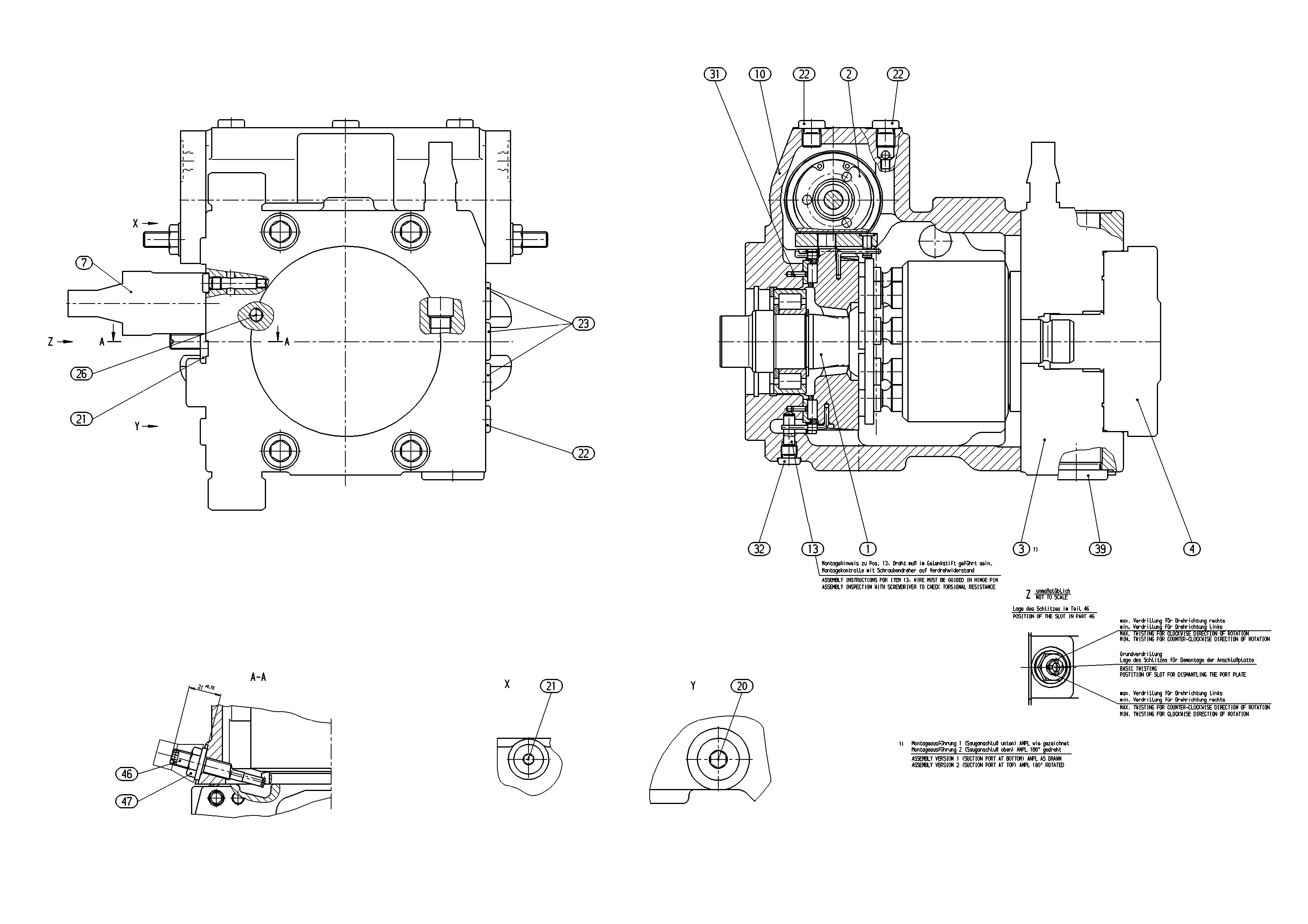

Assembly
AXIAL-PISTON PUMP
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902076602 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R902071378 | CONTROL Assembly parts list →L | 1 | ||
| R902071374 | CONNECTION PLATE Assembly parts list →L | 1 | ||
| R902078238 | BELL HOUSING Assembly parts list →L | 1 | ||
| R909414719 | CONTROL CARTRIDGE Assembly parts list →L | 1 | ||
| R902043329 | HOUSING | 1 | ||
| R902132713 | PIVOT PIN | 1 | ||
| R909154480 | SCREW PLUGD | 1 | ||
| R909153371 | SCREW PLUGD | 2 | ||
| R909154478 | SCREW PLUGD | 4 | ||
| R909153815 | SCREW PLUGD | 3 | ||
| R913016373 | SLOTTED SPRING PIN | 2 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| 37 | R909087912 | SCREW PLUG | 1 | |
| R909153378 | SCREW PLUG | 1 | ||
| R909435856 | ECCENTRIC SCREW | 1 | ||
| R909153271 | SEALING NUTD | 1 | ||
| 98 | R902095507 | SEAL KIT | 1 |
