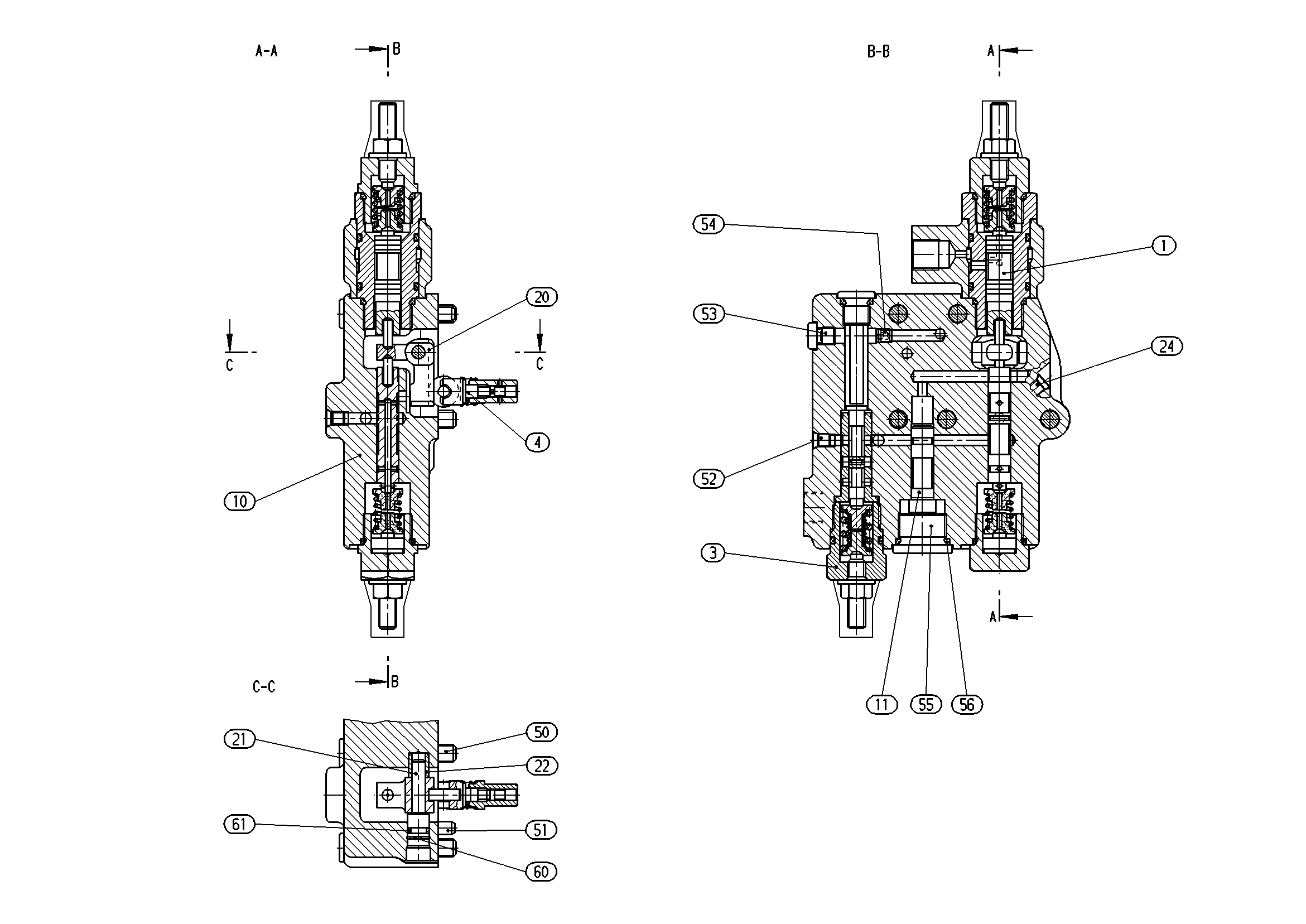

Assembly
REGULATOR
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902229773 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R909608948 | CONTROL ELEMENT Assembly parts list →L | 1 | ||
| R902012650 | MEASURING PISTON Assembly parts list →L | 1 | ||
| R909651435 | CONTROL HOUSING | 1 | ||
| R909445250 | LOCKING BOLT | 1 | ||
| R902122301 | ANGLE LEVER | 1 | ||
| R909440788 | BEARING BOLT | 1 | ||
| R909431286 | BUSHING | 1 | ||
| R909445306 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083043 | SOCKET HEAD CAP SCREW | 5 | ||
| R913009676 | STRAIGHT PIN | 2 | ||
| — | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909156490 | NOZZLE | 1 | ||
| R909083225 | SCREW PLUG | 1 | ||
| — | O-RING | 1 | ||
| R909087248 | RETAINING RING | 1 | ||
| — | O-RING | 1 |
