Assembly

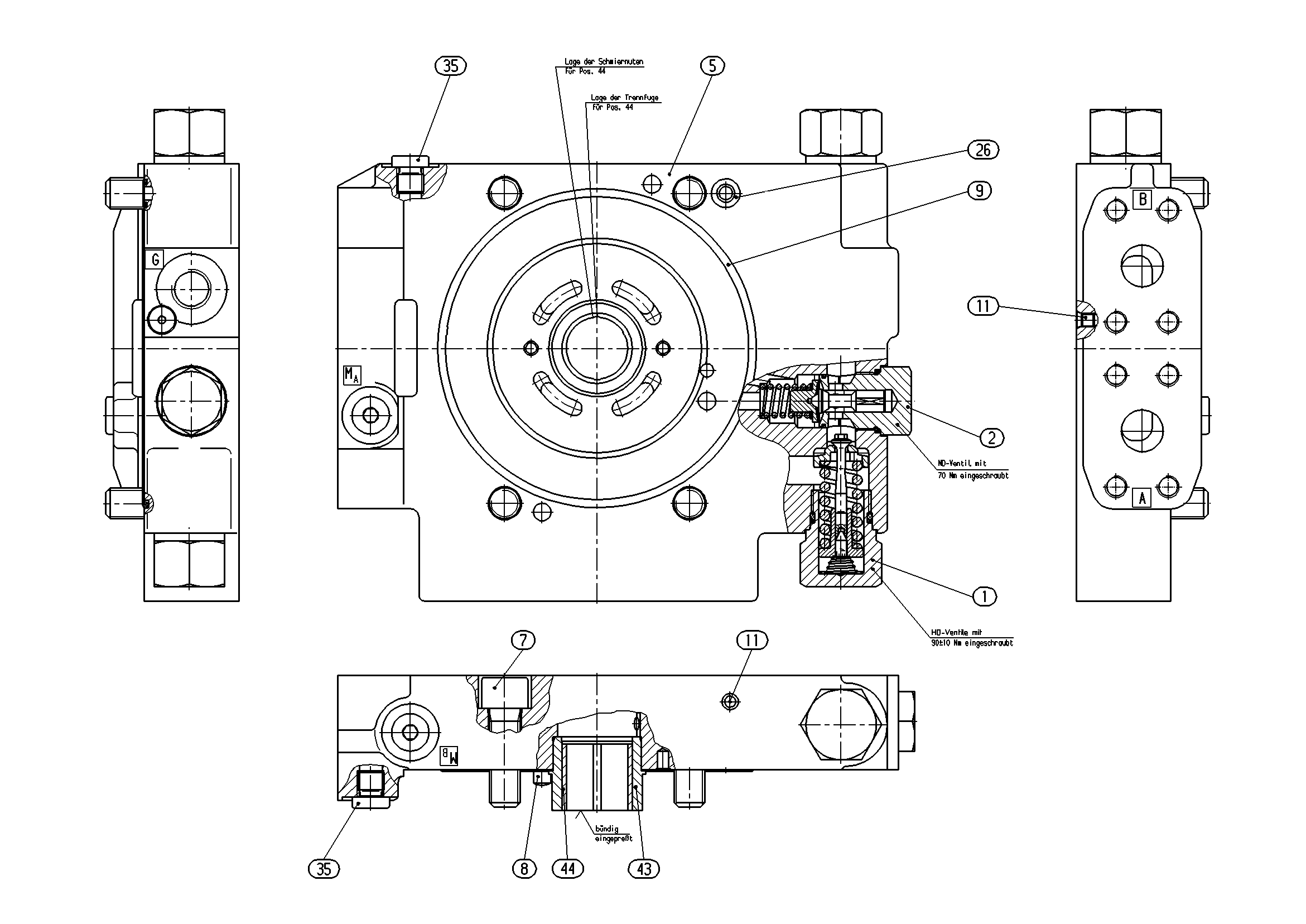

CONNECTION PLATE
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902016386 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | |
| R902051329 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| 5 | R902043412 | CONNECTION PLATE | 1 | |
| R909156851 | SOCKET HEAD CAP SCREW | 4 | ||
| R909084173 | STRAIGHT PIN | 2 | ||
| R909830424 | O-RINGD | 1 | ||
| 11 | — | DOUBLE BREAK-OFF PLUG | 1 | |
| 13 | R909154024 | SCREW PLUGD | 1 | |
| R909085709 | O-RINGD | 1 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| R902001050 | BUSHING | 1 | ||
| 44 | R902260549 | BUSHING | 1 |
