Assembly

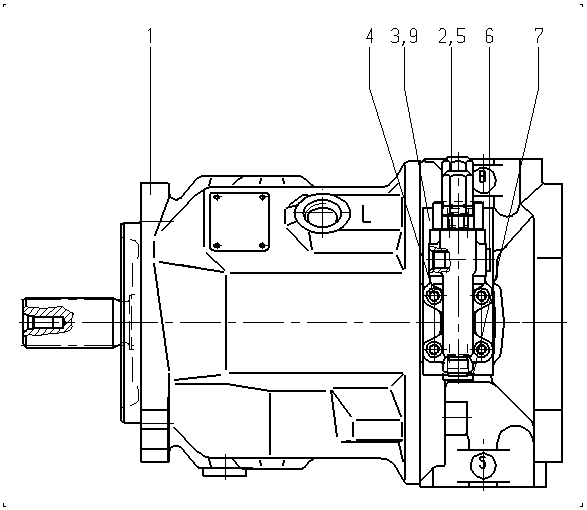

AXIAL-PISTON PUMP
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R910942119 | BASE UNIT Assembly parts list →L | 1 | ||
| R902448799 | CONTROL VALVE Assembly parts list →L | 1 | ||
| R910945032 | INTERMEDIATE PLATE | 1 | ||
| R910126454 | SOCKET HEAD CAP SCREW | 4 | ||
| R910515078 | O-RING | 3 | ||
| R909154478 | SCREW PLUG | 1 | ||
| R913011601 | SCREW PLUG | 2 | ||
| R910946752 | NOZZLE | 1 | ||
| 15 | R902434482 | SEAL | 1 |
